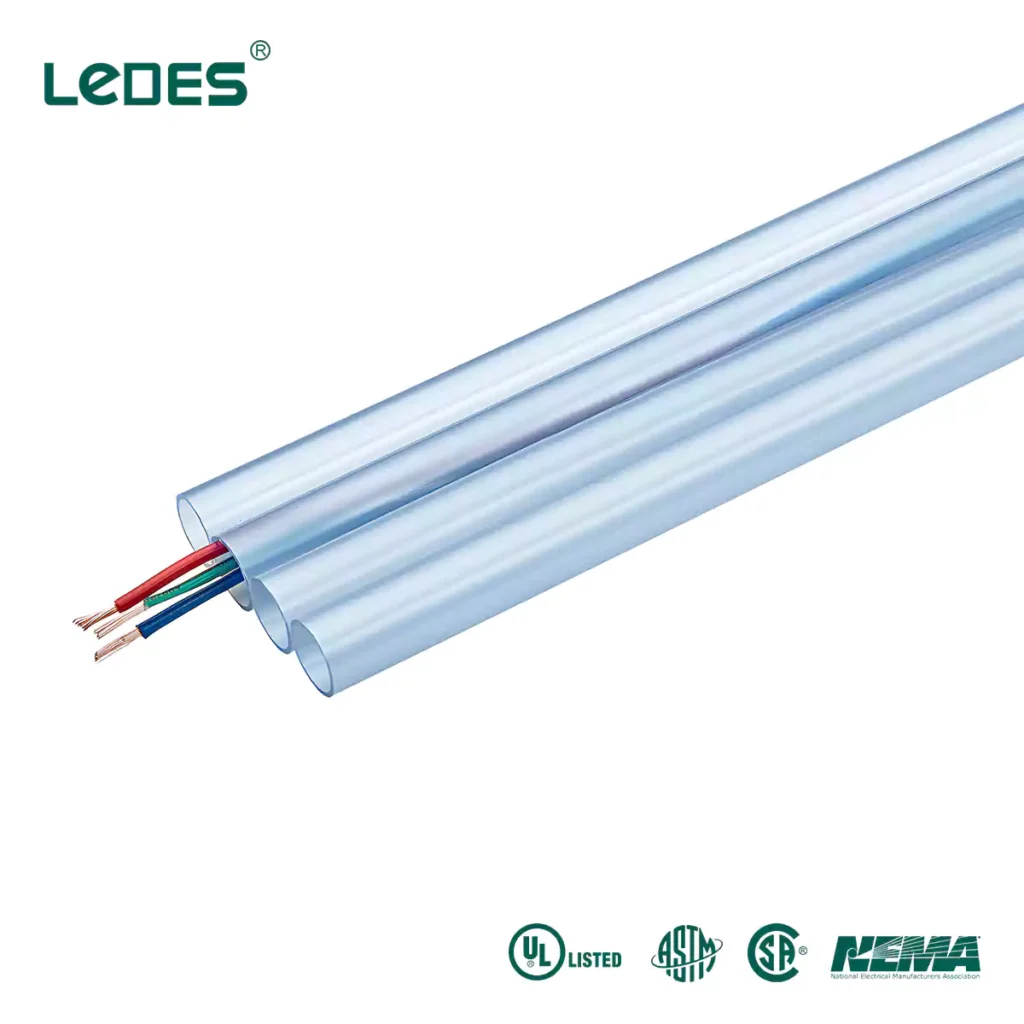

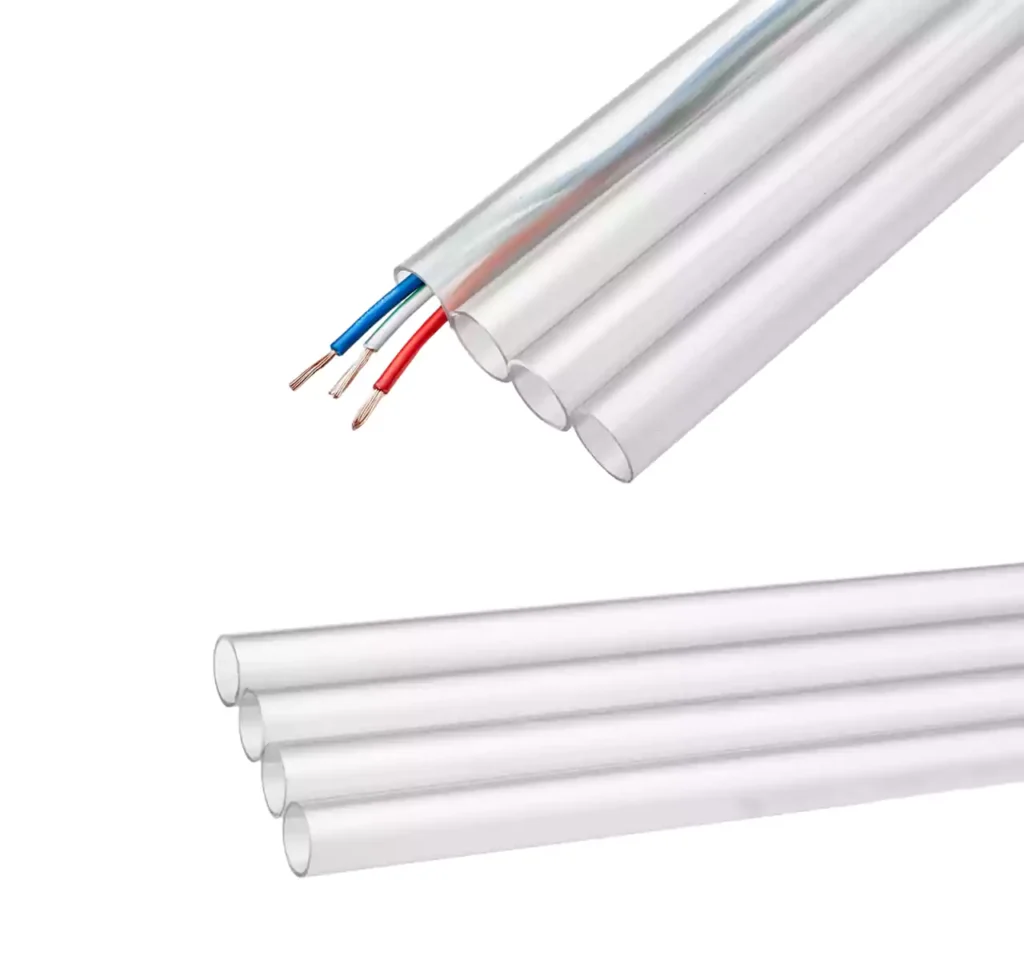

Clear PVC Conduit
Features
Clear PVC conduit is used for cable protection. Due to the transparent features, the internal cable can be clearly kept. It is mainly used for cable protection of important infrastructure such as laboratories and health care equipment. It is two opinions available: schedule 40 and schedule 80.
It has the same performance as standard Schedule 40 PVC conduit, and its excellent performance can protect the internal cable and is UL listed.
- UL 651 Listed
- ASTM 1784-20 Certified
- NEMA & NEC Compliance
- Customized service available
- For electrical contractors, builders and wholesaler
Overview
UL LISTED. The clear PVC conduit is the UL-listed & 90°C Wire Rated. Contact our expert for more information.
Branded Product. 100% brand new materials and has high quality, such as smooth interior and exterior for running the electrical wires, and compliance with the NEC code.
Fire Rated. UL 94V-0/5VA fire rating means no flaming out in 5s when cutting off the fire source, which will best protect your building & facilities.
Non-Metallic Pipe. Heat-, corrosion-, fire-, sunlight-, and rust resistance are pros for clear PVC pipes.
Trusted Partner. 1500+ customers in services & 15+ mass project core suppliers all over the world.
Product Description
As the world's most stringent electrical conduit standard, UL listed clear plastic conduits can ensure the greatest possible safety for your project and electrical equipment.
The ASTM D1784-20 standard sets clear requirements for the raw materials of transparent PVC conduits. Only good PVC raw materials can have good quality.
UL certification requires UL94 level, but Ledes' fire protection level is UL94 V-0/5VA, which is the highest fire protection level and can extinguish open flames within 5 seconds after cutting off the fire source.
The excellent clear electrical conduit has Sunlight Resistance performance, and Ledes' UL listed conduit series has all passed the sunlight resistance test.
The 90°C Wire Rated ensures that clear pvc pipe can handle thicker diameter wires without creating a safety risk due to overheating.
Size Chart & Performance
Size(in) | Part No. | OD(in) | T(Min) | Feet Per Pack |
1/2 | LE-ULCA | 0.840 | 0.109 | 6000 |
3/4 | LE-ULCB | 1.050 | 0.113 | 4400 |
1 | LE-ULCC | 1.315 | 0.133 | 3600 |
1-1/4 | LE-ULCD | 1.660 | 0.140 | 3300 |
1-1/2 | LE-ULCE | 1.900 | 0.145 | 2250 |
2 | LE-ULCF | 2.375 | 0.154 | 1400 |
2-1/2 | LE-ULCG | 2.875 | 0.203 | 930 |
3 | LE-ULCH | 3.500 | 0.216 | 880 |
3-1/2 | LE-ULCI | 4.000 | 0.226 | 630 |
4 | LE-ULCJ | 4.500 | 0.237 | 570 |
5 | LE-ULCK | 5.563 | 0.258 | 380 |
6 | LE-ULCL | 6.625 | 0.280 | 260 |
8 | LE-ULCM | 8.625 | 0.322 | 180 |
Tensile Strength | 5000 psi (3.45 kN/cm2) |
Extrusion | Fusion |
Water Absorption | ﹤0.50% of Whole Weight After Soak |
Resistance to Crushing | ID≥70% After Test |
Resistance to Impact | Less Than 3 of 1/32 inch Cracks & Tears |
Deflection under Load | ﹤0.25mm Deformation |
Fire Rating | UL 94V-0/5VA |
Resistance to Specific Reagents | Less ±2.50% Weight After 60 / 120 Days Soak |
Permanency of Printing | Yes |
Rust & Sunlight Resistant | Yes |
Color | Clear |
Material | PVC |
OEM Services | Available |
Place of Origin | Dongguan, China |
Shipping | By sea |
Samples | Available |
Length | 10ft. and 20ft. |
Why Ledes
1st UL & CSA Certified in China
Ledes, a leading PVC conduit manufacturer in China, is UL & CSA-certified with FT4 rating. They also have ASTM, AS / NZS 2053, IEC, ROHS, CE, and ISO certifications. With its superior quality and compliance, Ledes has become a trusted brand for electrical professionals and homeowners.
The Contractor's Choice
With 14+ years of industry experience, we've proudly served power stations, hospitals, metro systems, and solar projects, and more.
Customization
Tailored to your project, Ledes offers compliant products that save you time and cost. Meet local electrical code requirements 100% while optimizing your project.
Competitive Price
Get cost savings and a competitive edge. Purchase directly from the factory and increase your local market competitiveness.
High Quality
Ledes reach extends beyond borders. Delivering high-quality products to over 80 countries worldwide, we're proud to offer exceptional conduit solutions to customers everywhere.
Our electrical conduit & factory certified by
Certifications
● UL & CSA & ASTM & AS/NZS & IEC & ISO Certified
● 1500+ Customers in Service
● 100+ Certifications & Patents
● 15+ Construction Project Core Supplier
● 16+ Years Factory & 500+ Workers
Projects
Ledes is proud to have participated in 15+ large-scale construction projects and become the top electrical conduit supplier for real estate developers, including the United States, Canada, Australia, Saudi Arabia, Macau and other countries, and has been well received by contractors and builders!
- CHPE Project
- The Standard of Four Corners
- A.B.Brown Power Station
- Melbourne Metro Tunnel
- Abu Dhabi UAE Al Dhafra PV2 Project
- Macau Island Hospital
What Our Customer Say
FAQ
Are you a manufacturer or trading company?
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Do you have customized services available?
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
What is your MOQ?
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
What is your lead time?
The general L/D is 15 – 30 days, but it depends on your quantity.
What is your shipping port?
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
What is your payment term?
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Do you offer sample services?
Yes, we support sample services; contact us to claim your sample today!
How should I contact you?
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
Cooperate with Ledes
Looking for a partner in distributing and wholesaling? Ledes offers a comprehensive network to distributors & wholesalers worldwide. Get exclusive access to technical and marketing resources.
Related Products
Schedule 40 PVC Electrical Conduit
Schedule 40 PVC electrical conduit is used in daily construction projects, including direct burial or ground cable protection, and is the first choice of builders and electrical contractors.
ENT Conduit
ENT Conduit is suitable for concrete pre-buried or ceiling cable installation, UL and CSA certification ensures compliance with NEC and CEC code.
DB2 Conduit CSA Certified
DB2 rigid PVC conduit complies with CSA standards and can be used for direct burial electrical installations and is widely used in North America.
Electrical Conduit Fittings
Electrical Conduit Fittings can be used for the installation and connection of PVC conduits, which can not only better protect the cables but also save installation costs.
