Corrugated Electrical Conduit
Features

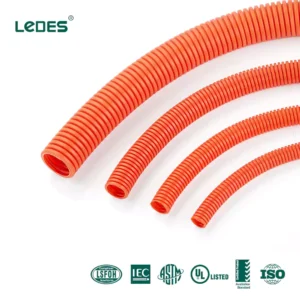

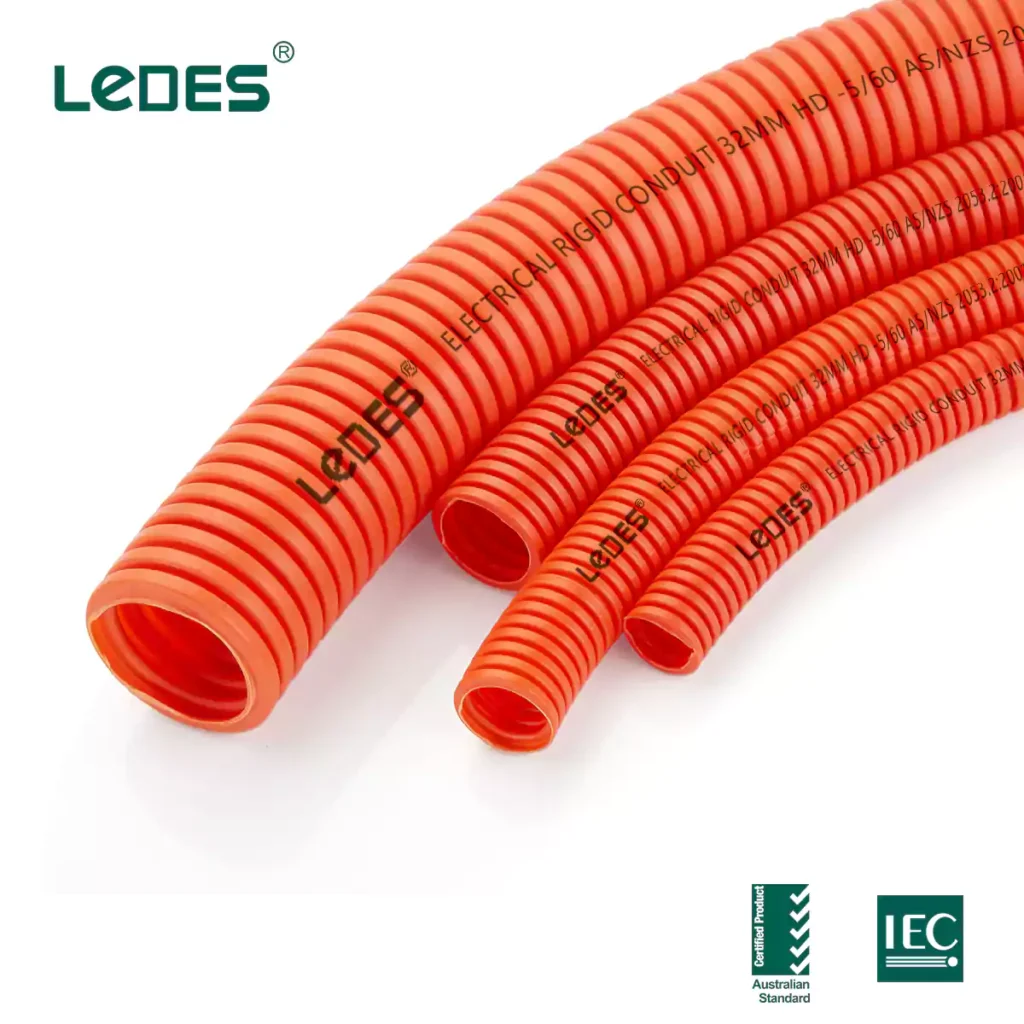

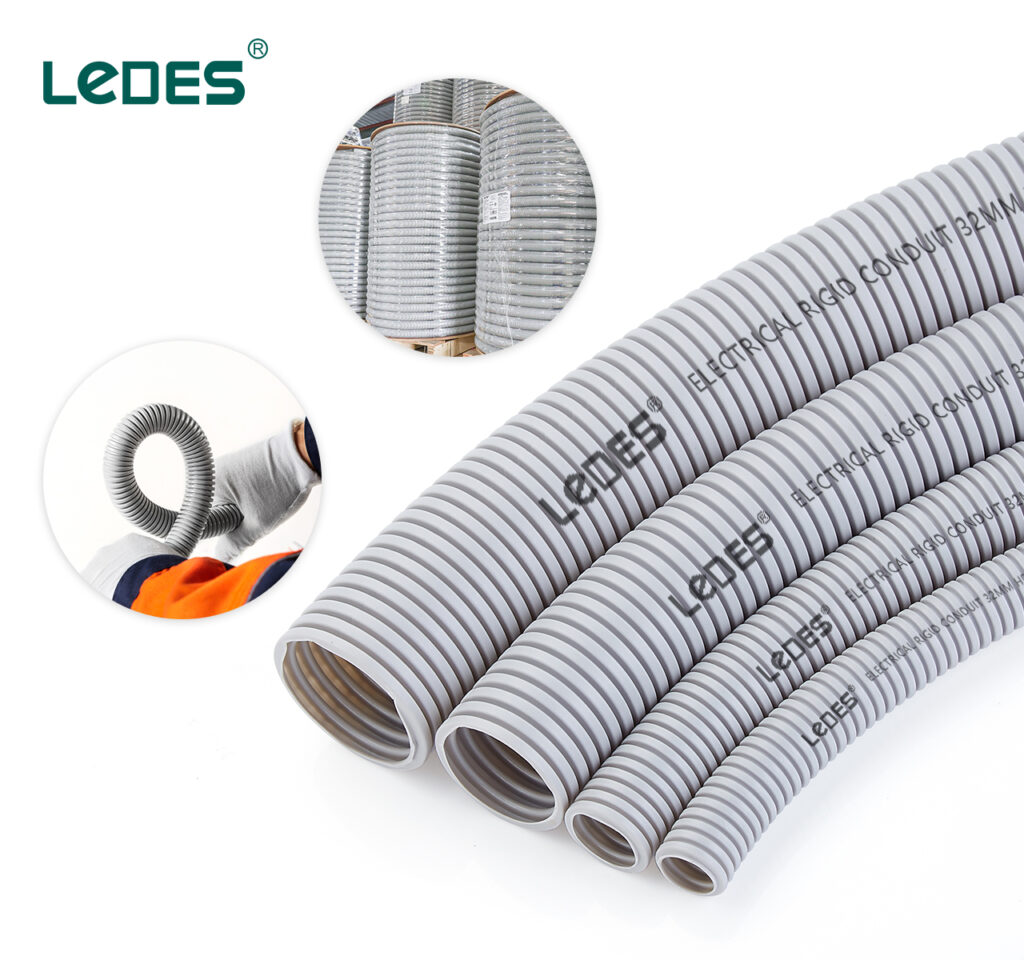

Corrugated electrical conduit is a flexible conduit that can be used for construction and cable protection in limited spaces such as ceilings and corners.
In Australia and New Zealand, corrugated conduit needs to pass the AS/NZS 2053 standard to be sold and installed. Ledes’ rigid PVC conduit and flexible PVC conduit are both certified by AS/NZS 2053 and IEC 61386, ensuring compliance with local electrical codes AS/NZS 3000.
- AS/NZS 2053 Certified
- IEC 61386 Certified
- AS/NZS 3000 Compliance
- Customized service available
- For electrical contractors, builders and wholesaler
Overview
AS/NZS Certified. Ledes corrugated electrical conduit is AS/NZS & IEC certified. Contact our expert to know more details.
Excellent Performance. Up to 1,250N compression resistance & 6J of impact resistance means excellent physical performance, and ensures a long run in your electrical project.
Fire Rated. UL94 V-0/5VA is the highest fire rating in UL certification, which can ensure electrical safety in extreme conditions.
Full Customized Service. Ledes offers a project-based customized which can customize electrical conduits based on your project needs of electrical contractors or builders.
Trusted Partner. 1500+ customers in services & 15+ mass project core suppliers all over the world.
Product Description
As the most accepted corrugated conduit standard in Australia, it can be used in electrical installation projects and distribution in the local market. And the code can greatly boost builders and distributors to choose electrical conduits that meet local electrical codes.
IEC has also published the IEC 61386 standard to regulate the performance and requirements of corrugated plastic tubings. Ledes flexible PVC conduit also has IEC certifications to ensure that the products meet IEC requirements.
Ledes' flex PVC conduit has passed UL94 V-0 fire rated, fully complies with AS/NZS 3000 requirements, and can be sold and used in Australia and New Zealand.
Up to 1,250N compression resistance & 6J of impact resistance means excellent physical performance, and fully meets the requirements of AS/NZS and IEC standards. That's mean the lifetime is more than 50 years once correct installation.
Ledes not only offfers pre-sales service, but also after-sales service relying on local brand distributors to provide convenient and fast support, so you don’t have to worry about it.
Size Chart & Performance
Products code | Type | Description | Length |
LE- MDCC1625 | ￠16 | MD Conduit 16mm x 25m | 25m/roll |
LE- MDCC1650 | ￠16 | MD Conduit 16mm x 50m | 50m/roll |
LE- MDCC2010 | ￠20 | MD Conduit 20mm x 10m | 10m/roll |
LE- MDCC2020 | ￠20 | MD Conduit 20mm x 20m | 20m/roll |
LE- MDCC2050 | ￠20 | MD Conduit 20mm x 50m | 50m/roll |
LE- MDCC2510 | ￠25 | MD Conduit 25mm x 10m | 10m/roll |
LE- MDCC2520 | ￠25 | MD Conduit 25mm x 20m | 20m/roll |
LE- MDCC2550 | ￠25 | MD Conduit 25mm x 50m | 50m/roll |
LE- MDCC3210 | ￠32 | MD Conduit 32mm x 10m | 10m/roll |
LE- MDCC3225 | ￠32 | MD Conduit 32mm x 25m | 25m/roll |
LE- MDCC4010 | ￠40 | MD Conduit 40mm x 10m | 10m/roll |
LE- MDCC4025 | ￠40 | MD Conduit 40mm x 25m | 25m/roll |
LE- MDCC5010 | ￠50 | MD Conduit 50mm x 10m | 10m/roll |
LE- MDCC5025 | ￠50 | MD Conduit 50mm x 25m | 25m/roll |
LE- MDCC6325 | ￠63 | MD Conduit 63mm x 25m | 25m/roll |
Products code | Type | Description | Length |
LE- HDCC2010 | ￠20 | HD Conduit 20mm x 10m | 10m/roll |
LE- HDCC2020 | ￠20 | HD Conduit 20mm x 20m | 20m/roll |
LE- HDCC2050 | ￠20 | HD Conduit 20mm x 50m | 50m/roll |
LE- HDCC2510 | ￠25 | HD Conduit 25mm x 10m | 10m/roll |
LE- HDCC2525 | ￠25 | HD Conduit 25mm x 25m | 25m/roll |
LE- HDCC2550 | ￠25 | HD Conduit 25mm x 50m | 50m/roll |
LE- HDCC3210 | ￠32 | HD Conduit 32mm x 10m | 10m/roll |
LE- HDCC3225 | ￠32 | HD Conduit 32mm x 25m | 25m/roll |
LE- HDCC4010 | ￠40 | HD Conduit 40mm x 10m | 10m/roll |
LE- HDCC4025 | ￠40 | HD Conduit 40mm x 25m | 25m/roll |
LE- HDCC5010 | ￠50 | HD Conduit 50mm x 10m | 10m/roll |
LE- HDCC5025 | ￠50 | HD Conduit 50mm x 25m | 25m/roll |
LE- HDCC6325 | ￠63 | HD Conduit 63mm x 25m | 25m/roll |
Product name | PVC Flexible Conduit |
Color | Gray, Orange, Black or customized |
Size | 16mm/20mm/25mm/32mm/40mm/50mm/63mm |
Thickness | Customized |
Length | 10m/roll,20m/roll,25m/roll 50m/roll,100m/roll, |
Usage | Electrical Wire Protection |
Bendable | High Flexibility |
Material: | PVC |
Place of origin: | Dongguan, China |
Shipping: | By sea |
Samples: | Available |
Flexible Conduit Series
ENT Conduit
ENT Conduit is suitable for concrete pre-buried or ceiling cable installation, UL and CSA certification ensures compliance with NEC and CEC code.

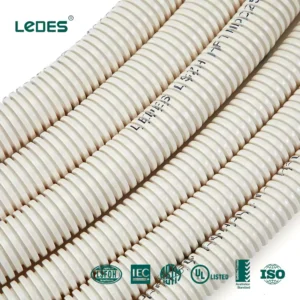

LSZH Conduit Flexible
LSZH corrugated electrical conduit is suitable for high-end buildings, such as schools, hospitals, airports, etc. The benefits are low smoke and zero halogen. It has been certified UL, IEC, AS/NZS and other industry certifications. It is available in medium (gray) and heavy (orange or black).
Comms Corrugated Conduit
Comms corrugated conduit is fit for underground or above-ground communication cable protection, usually white and medium-duty. It has been certified by UL, IEC, and AS/NZS industry certifications.

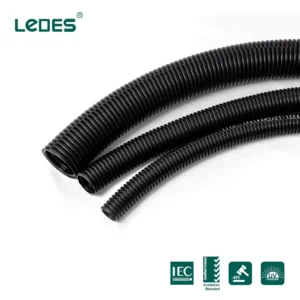

Auto Corrugated Conduit
Auto corrugated conduit is used for in-vehicle cable and EV charging station wire protection. It has extremely high performance requirements and can meet automotive-grade standards.
Why Ledes
1st UL & CSA Certified in China
Ledes, a leading PVC conduit manufacturer in China, is UL & CSA-certified with FT4 rating. They also have ASTM, AS / NZS 2053, IEC, ROHS, CE, and ISO certifications. With its superior quality and compliance, Ledes has become a trusted brand for electrical professionals and homeowners.
The Contractor's Choice
With 14+ years of industry experience, we've proudly served power stations, hospitals, metro systems, and solar projects, and more.
Customization
Tailored to your project, Ledes offers compliant products that save you time and cost. Meet local electrical code requirements 100% while optimizing your project.
Competitive Price
Get cost savings and a competitive edge. Purchase directly from the factory and increase your local market competitiveness.
High Quality
Ledes reach extends beyond borders. Delivering high-quality products to over 80 countries worldwide, we're proud to offer exceptional conduit solutions to customers everywhere.
Our electrical conduit & factory certified by
Certifications
● UL & CSA & ASTM & AS/NZS & IEC & ISO Certified
● 1500+ Customers in Service
● 100+ Certifications & Patents
● 15+ Construction Project Core Supplier
● 16+ Years Factory & 500+ Workers
Projects
Ledes is proud to have participated in 15+ large-scale construction projects and become the top electrical conduit supplier for real estate developers, including the United States, Canada, Australia, Saudi Arabia, Macau and other countries, and has been well received by contractors and builders!
- CHPE Project
- The Standard of Four Corners
- A.B.Brown Power Station
- Melbourne Metro Tunnel
- Abu Dhabi UAE Al Dhafra PV2 Project
- Macau Island Hospital
What Our Customer Say
FAQ
Are you a manufacturer or trading company?
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Do you have customized services available?
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
What is your MOQ?
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
What is your lead time?
The general L/D is 15 – 30 days, but it depends on your quantity.
What is your shipping port?
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
What is your payment term?
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Do you offer sample services?
Yes, we support sample services; contact us to claim your sample today!
How should I contact you?
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
Cooperate with Ledes
Looking for a partner in distributing and wholesaling? Ledes offers a comprehensive network to distributors & wholesalers worldwide. Get exclusive access to technical and marketing resources.
Related Products
Schedule 40 PVC Conduit
Schedule 40 PVC electrical conduit is used in daily construction projects, including direct burial or ground cable protection, and is the first choice of builders and electrical contractors.
ENT Conduit UL Listed
ENT Conduit is suitable for concrete pre-buried or ceiling cable installation, UL and CSA certification ensures compliance with NEC and CEC code.

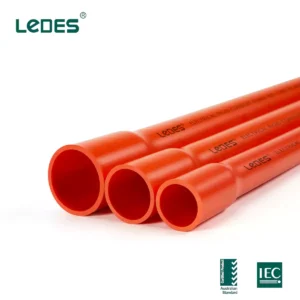

PVC Electrical Conduit ASNZS Certified
