Features

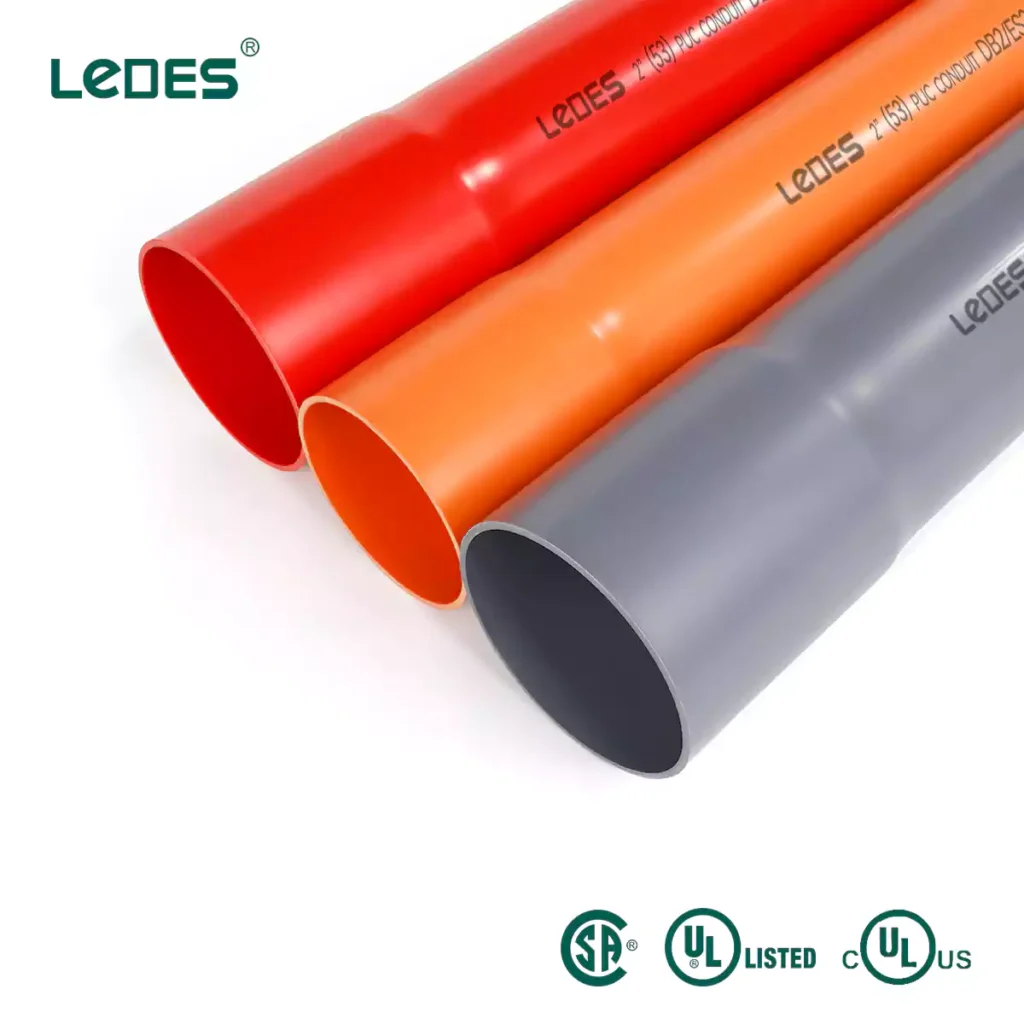

The Type DB2 conduit purpose in concrete encased or masonry and direct burial installation. Type DB2 PVC is CSA C22.2 No. 211.1 certified and CEC code compliance.
DBII pipe is a perfect match with Canadian electrical contractors and distributors for local civil and commercial construction projects.
- CSA C22.2 No. 211.1:06 Certified
- UL 651 Listed & FT4 Fire Rated
- CEC & NEC Code Compliance
- Customized service available
- For electrical contractors, builders and wholesaler
Overview
CSA & UL Certified. Ledes DB2 conduit and fittings are not only CSA & UL certified, but also comply with CEC code requirements. Contact our experts today for your project.
Branded Product. 100% brand new materials and has high quality such as smooth interior and outside for running the electrical wires, and compliance CEC code.
Fire Rated. FT4 & UL 94V-0/5VA fire rating means no flaming out in 5s when cutting off the fire source, which will best protect your building & facilities.
Non-Metallic Duct. Opt for our PVC DB2 Comms duct, the non-metallic solution that stands up to heat, corrosion, fire, and sunlight with ease. It’s the reliable and enduring choice for your project’s success.
Trusted Partner. 1500+ customers in services & 15+ mass project core suppliers all over the world.

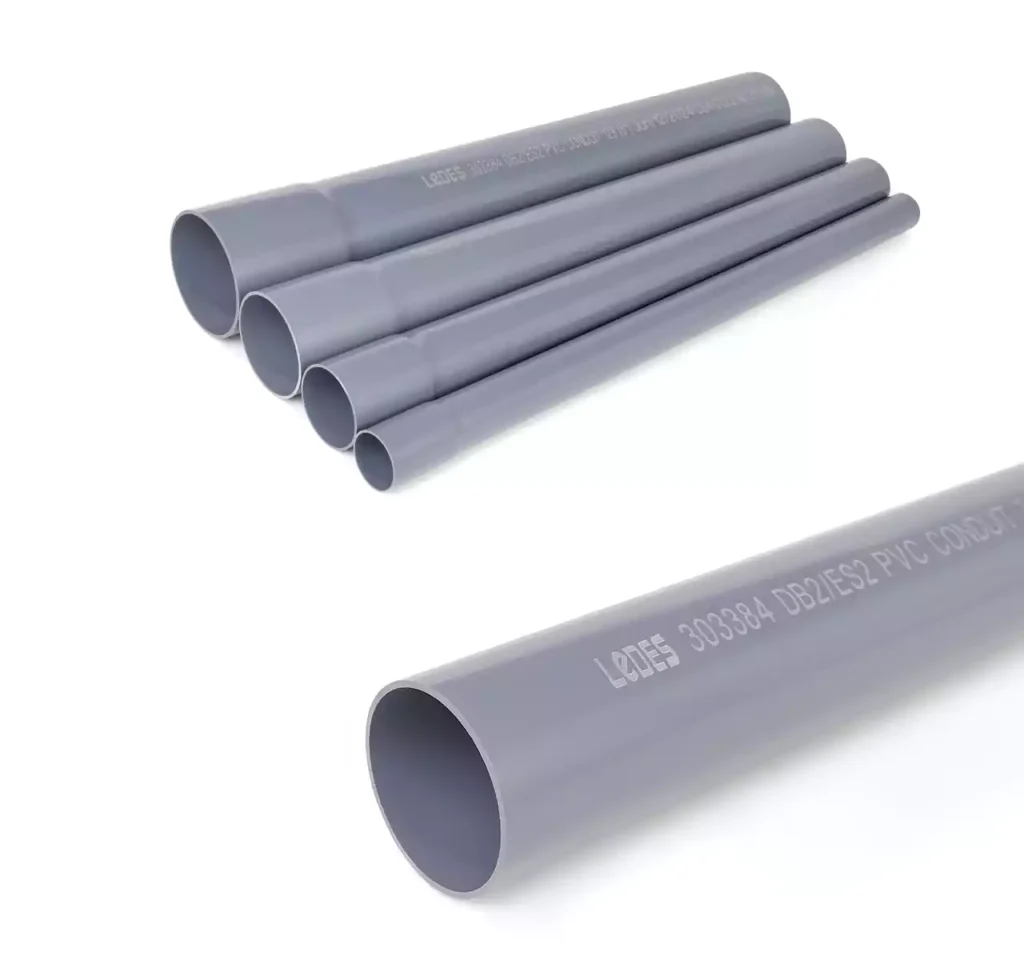

Product Description
As the Canadian PVC conduit standard, CSA certification means that it can be sold and installed locally, making it the best choice for electrical contractors and distributors.
As the most definitive PVC conduit standard in North America, UL 651 is widely praised and accepted by customers and is used as the first standard for finding electrical conduit manufacturers.
As the most stringent FT4 fire rating in CSA code, Ledes' PVC conduit series all pass it and also passed the UL94 V-0/5VA fire test.
As a direct buried conduit, Ledes' rigid PVC conduit has a high impact resistance of 61 J and a stiffness of 300 kPa, which allows builders to complete the construction and pass the acceptance smoothly.
Ledes offers in-depth customization services, not only in color and size, but also in high-quality PVC conduits tailored to your construction project. Contact our business manager to get the latest price!
Size Chart & Performance
Trade Size | Part No. | Avg. OD(mm) | Avg. ID(mm) | Min T(mm) |
2 | LE-DB2A | 57.30 | 50.80 | 2.02 |
3 | LE-DB2B | 82.57 | 76.20 | 2.40 |
3-1/2 | LE-DB2C | 95.00 | 88.40 | 2.60 |
4 | LE-DB2D | 107.30 | 100.10 | 3.06 |
4-1/2 | LE-DB2E | 121.70 | 114.30 | 3.20 |
5 | LE-DB2F | 134.85 | 126.35 | 4.00 |
6 | LE-DB2G | 159.65 | 149.75 | 4.20 |
Resistance to Impact | 61 J at 23 °C and 34 J at –18 °C |
Extrusion | Fusion |
Water Absorption | ﹤0.50% of Whole Weight After Soak |
Resistance to Crushing | ID≥70% After Test |
Resistance to Impact | Less Than 3 of 1/32 inch Cracks & Tears |
Deflection under Load | ﹤0.25mm Deformation |
Fire Rating | FT4 / UL 94V-0/5VA |
Resistance to Specific Reagents | Less ±2.50% Weight After 60 / 120 Days Soak |
Permanency of Printing | Yes |
Rust & Sunlight Resistant | Yes |
Color | Gray or Customized |
Material | PVC |
OEM Services | Available |
Place of Origin | Dongguan, China |
Shipping | By sea |
Samples | Available |
Length | 10ft. |
Direct Burial Conduit

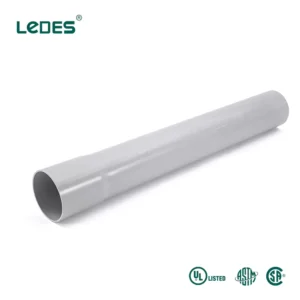

DB60 Conduit
DB60 conduit means direct buried conduit, which is used for concrete and underground installation to protect cables from moisture and bacteria (without encasement in concrete).
DB100 Conduit
Compared with DB60 conduit, DB100 conduit has thicker wall, so the theoretical physical performance is better.
DB120 Conduit
DB120 is the best-performing in direct buried conduit series and can be used to protect cables in harsh environments.
Why Ledes
1st UL & CSA Certified in China
Ledes, a leading PVC conduit manufacturer in China, is UL & CSA-certified with FT4 rating. They also have ASTM, AS / NZS 2053, IEC, ROHS, CE, and ISO certifications. With its superior quality and compliance, Ledes has become a trusted brand for electrical professionals and homeowners.
The Contractor's Choice
With 14+ years of industry experience, we've proudly served power stations, hospitals, metro systems, and solar projects, and more.
Customization
Tailored to your project, Ledes offers compliant products that save you time and cost. Meet local electrical code requirements 100% while optimizing your project.
Competitive Price
Get cost savings and a competitive edge. Purchase directly from the factory and increase your local market competitiveness.
High Quality
Ledes reach extends beyond borders. Delivering high-quality products to over 80 countries worldwide, we're proud to offer exceptional conduit solutions to customers everywhere.
Our electrical conduit & factory certified by
Certifications
● UL & CSA & ASTM & AS/NZS & IEC & ISO Certified
● 1500+ Customers in Service
● 100+ Certifications & Patents
● 15+ Construction Project Core Supplier
● 16+ Years Factory & 500+ Workers
Projects
Ledes is proud to have participated in 15+ large-scale construction projects and become the top electrical conduit supplier for real estate developers, including the United States, Canada, Australia, Saudi Arabia, Macau and other countries, and has been well received by contractors and builders!
- CHPE Project
- The Standard of Four Corners
- A.B.Brown Power Station
- Melbourne Metro Tunnel
- Abu Dhabi UAE Al Dhafra PV2 Project
- Macau Island Hospital
What Our Customer Say
FAQ
Are you a manufacturer or trading company?
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Do you have customized services available?
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
What is your MOQ?
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
What is your lead time?
The general L/D is 15 – 30 days, but it depends on your quantity.
What is your shipping port?
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
What is your payment term?
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Do you offer sample services?
Yes, we support sample services; contact us to claim your sample today!
How should I contact you?
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
