Curva de conducto eléctrico
Características

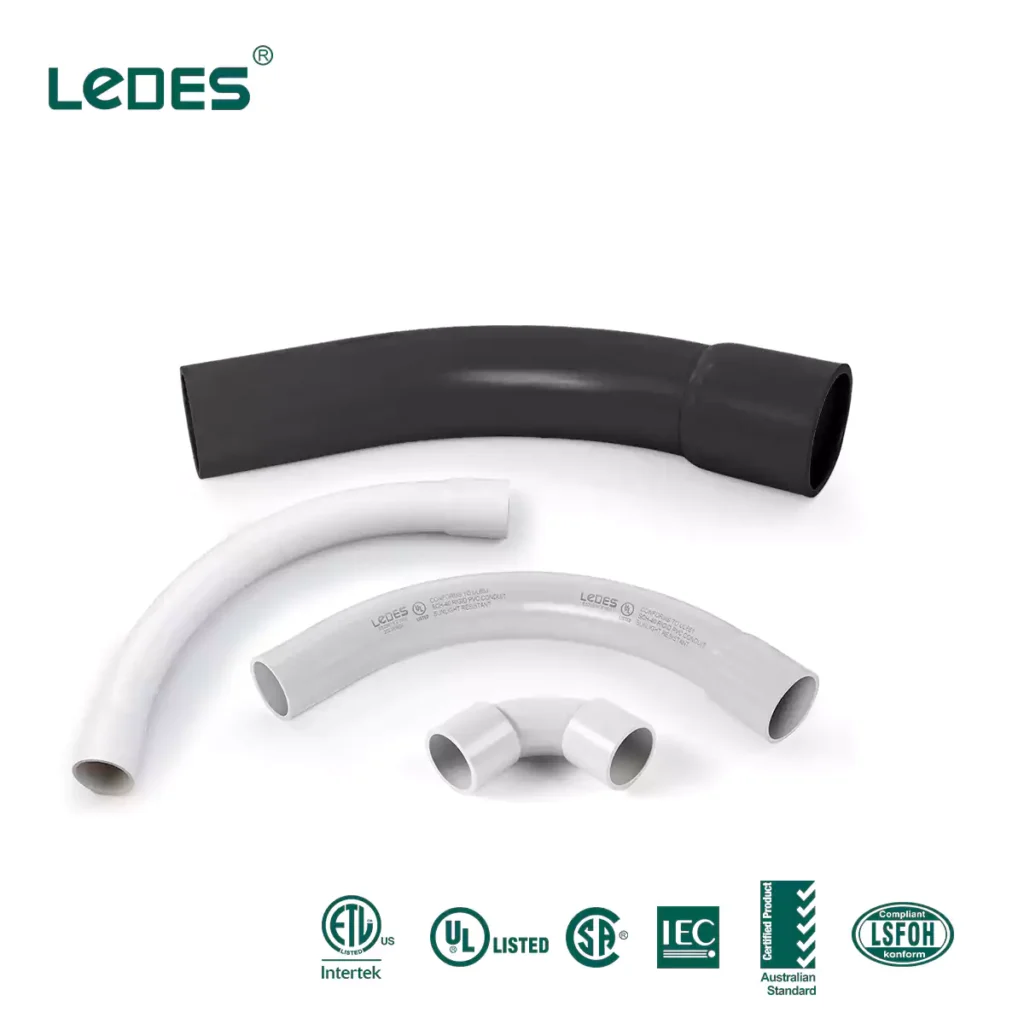

Electrical conduit bends are conduit fittings that are used with the injection molded process in one piece. The purpose is to offer quickly and reliable connections for conduits when non-straight installations, and to protect the safety of the cables inside.

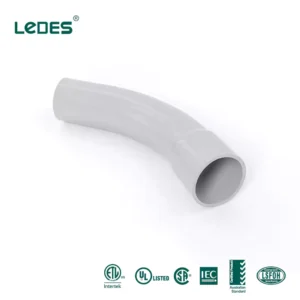

The common types of electrical conduit bends are 90° and 45° elbows, which look like a section of PVC conduit and are more convenient to install. There are also sweep bends and bends with special angles, such as 22.5°, and their performance and specifications are similar.
Ledes bend pvc conduit has passed relevant industry certifications such as UL, CSA, AS/NZS and IEC, and provides electrical solutions for the United States, Canada, Australia, and South America builders and electrical contractor.
- Listado UL 651
- CSA C22.2 No. 211.1:06 & ASTM 1784-20 Certified
- NEC & CEC Codes Compliance
- Customized service available
- For electrical contractors, builders and wholesaler
Descripción general
UL & CSA Certified. Ledes electrical conduit bends are UL & CSA certified. Reach out to our expert to know more details.
Branded Product. Made of 100% brand new materials and has high quality, such as a smooth interior and outside for running the electrical cables.
Long Last & Durability. Up to 4,448N Bending Load & 61 J of Resistance to Impact, ensuring long-term stable use after installation.
Fire Rated. UL94 V-0/5VA & FT4 fire-rated can ensure that the spread of fire is reduced and electrical safety is improved in extreme cases.
Trusted Partner. 1500+ customers in services & 15+ mass project core suppliers all over the world.

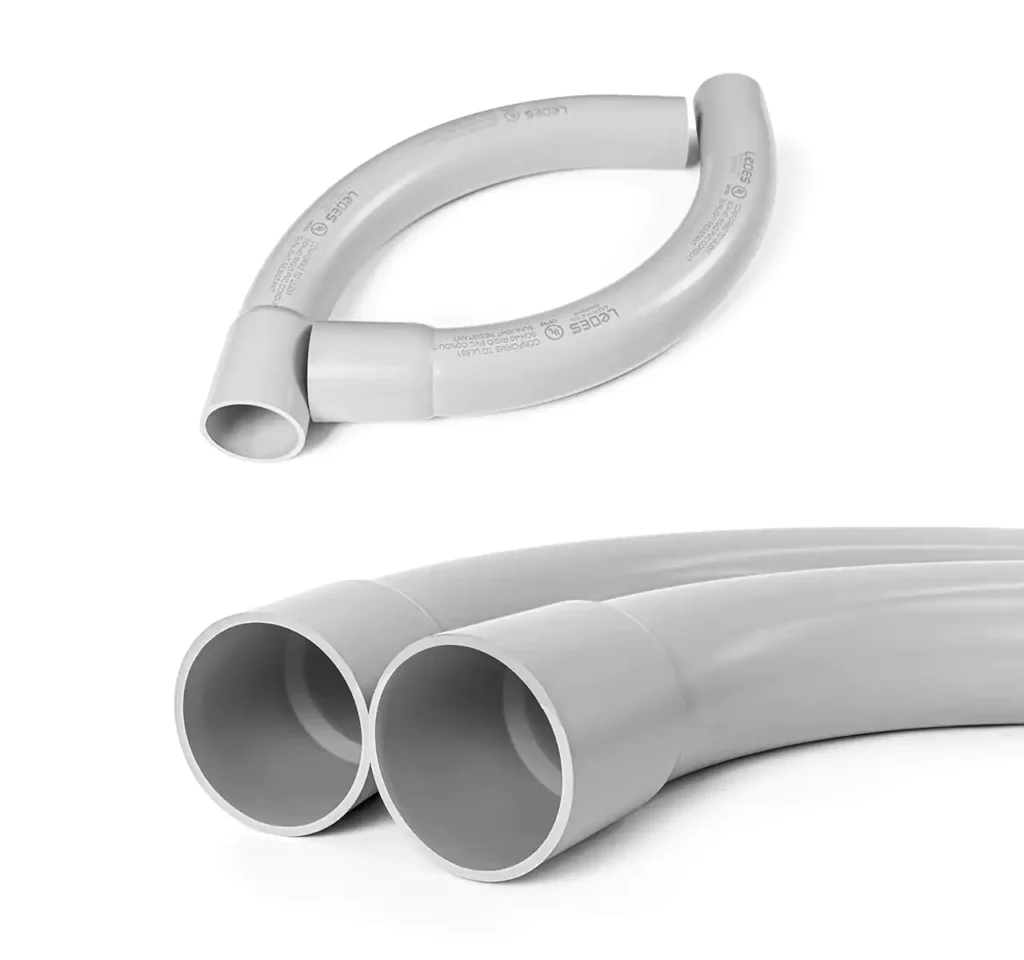

Product Description
The conduit bends, like the Schedule 40 conduit, are UL 651 listed and comply with NEC code, ensuring normal construction and acceptance in the United States, and their performance fully complies with North American building requirements.
CSA-certified electrical conduit bends can be used in civil and commercial buildings, fully comply with Canadian electrical standards, and can be used in local civil, commercial and power station construction projects.
Ledes' conduit pipe bend has passed UL94 V-0/5VA and FT4 fire rated dual certifications, fully complies with NEC and CEC requirements, and can be sold and used in North America, including the United States and Canada.
Up to 4,448N Bending Load & 61 J of Resistance to Impact, not only fully meets the certification requirements of UL and CSA, but also can be maintenance-free in the later stage, greatly reducing the cost for building company.
Ledes not only offfers pre-sales service, but also after-sales service relying on local brand distributors to provide convenient and fast support, so you don’t have to worry about it.
Size Chart & Performance
Size(in) | Item No. | A(in) | B(in) | R(in) |
1/2 | LE-SWB90A | 0.84 | 1.5 | 4 |
3/4 | LE-SWB90B | 1.05 | 1.5 | 4.5 |
1 | LE-SWB90C | 1.315 | 1.875 | 5.75 |
1-1/4 | LE-SWB90D | 1.66 | 2 | 7.25 |
1-1/2 | LE-SWB90E | 1.9 | 2 | 8.25 |
2 | LE-SWB90F | 2.375 | 2 | 9.5 |
2-1/2 | LE-SWB90G | 2.875 | 3 | 10.5 |
3 | LE-SWB90H | 3.5 | 3.125 | 13 |
3-1/2 | LE-SWB90I | 4 | 3.25 | 15 |
4 | LE-SWB90J | 4.5 | 3.375 | 16 |
5 | LE-SWB90K | 5.563 | 3.625 | 24 |
6 | LE-SWB90L | 6.625 | 3.75 | 30 |
8 | LE-SWB90M | 8.625 | 6.5 | 35.5 |
Size(in) | Item No. | A(in) | B(in) | R(in) |
1 | LE-SWS90C | 1.315 | 1.875 | Customization |
1-1/4 | LE-SWS90D | 1.660 | 2.000 | Customization |
1-1/2 | LE-SWS90E | 1.900 | 2.000 | Customization |
2 | LE-SWS90F | 2.375 | 2.000 | Customization |
2-1/2 | LE-SWS90G | 2.875 | 3.000 | Customization |
3 | LE-SWS90H | 3.500 | 3.125 | Customization |
3-1/2 | LE-SWS90I | 4.000 | 3.250 | Customization |
4 | LE-SWS90J | 4.500 | 3.375 | Customization |
5 | LE-SWS90K | 5.563 | 3.625 | Customization |
6 | LE-SWS90L | 6.625 | 3.750 | Customization |
8 | LE-SWS90M | 8.625 | 6.500 | Customization |
Bending Load | Up to 4448N(1000 lbf) |
Resistance to Crushing | Up to 166.7 lbf per linear |
Heat-distortion | ﹤15% with No Cracking |
Water Absorption | ﹤0.50% Weight |
Flammability Test | Less Than 5 Seconds Continue to Flame |
Extrusion/molding-process Test | No Flaking or Cracking |
Fire Rating | UL 94V-0/5VA & FT4 |
Permanency of Printing | Yes |
Rust & Sunlight Resistant | Yes |
Color | Gray or Customization |
Material | PVC |
Customized Services | Available |
Place of Origin | Dongguan, China |
Shipping | By Sea |
Samples | Available |
Dimensions | 1/2 to 8 inch |
ENT Conduit Series

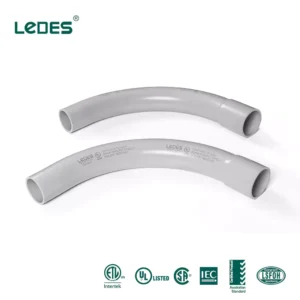

Sweep Bend
Sweep bend means standard bend, which is produced strictly according to the dimensions of UL and CSA standards, and is an elbow fitting that matches rigid PVC conduit.
Special PVC Conduit Bend
Special PVC conduit bends are bends that can be customized with a specific curvature, which is different from the conventional 90°, 45° and other sizes. Please contact our experts for more information.

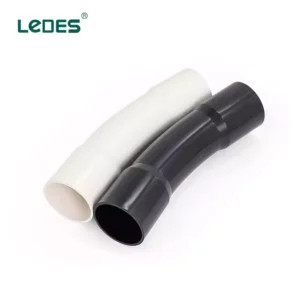

22.5 Degree Pipe Bend
22.5-degree pipe bend is used for electrical installation in special locations and is suitable for electrical conduit connections that do not require large-scale direction.
¿Por qué Ledes?
1st UL & CSA Certified in China
Ledes, a leading PVC conduit manufacturer in China, is UL & CSA-certified with FT4 rating. They also have ASTM, AS / NZS 2053, IEC, ROHS, CE, and ISO certifications. With its superior quality and compliance, Ledes has become a trusted brand for electrical professionals and homeowners.
The Contractor's Choice
With 14+ years of industry experience, we've proudly served power stations, hospitals, metro systems, and solar projects, and more.
Customization
Tailored to your project, Ledes offers compliant products that save you time and cost. Meet local electrical code requirements 100% while optimizing your project.
Competitive Price
Get cost savings and a competitive edge. Purchase directly from the factory and increase your local market competitiveness.
High Quality
Ledes reach extends beyond borders. Delivering high-quality products to over 80 countries worldwide, we're proud to offer exceptional conduit solutions to customers everywhere.
Nuestro conducto eléctrico y fábrica certificada por
Certificaciones
● UL & CSA & ASTM & AS/NZS & IEC & ISO Certified
● Más de 1500 clientes en servicio
● Más de 100 certificaciones y patentes
● Más de 15 proveedores principales de proyectos de construcción
● Más de 16 años de fábrica y más de 500 trabajadores
Projects
Ledes is proud to have participated in 15+ large-scale construction projects and become the top electrical conduit supplier for real estate developers, including the United States, Canada, Australia, Saudi Arabia, Macau and other countries, and has been well received by contractors and builders!
- Proyecto CHPE
- El estandarte de las cuatro esquinas
- Central eléctrica de ABBrown
- Túnel del metro de Melbourne
- Proyecto PV2 Al Dhafra en Abu Dabi, Emiratos Árabes Unidos
- Macau Island Hospital
Lo que dicen nuestros clientes
FAQ
¿Es usted un fabricante o una empresa comercial?
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
¿Disponen de servicios personalizados?
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
¿Cual es su MOQ?
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
¿Cual es su plazo de entrega?
The general L/D is 15 – 30 days, but it depends on your quantity.
¿Cual es su puerto de envío?
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
¿Cual es su plazo de pago?
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
¿Ofrecen servicios de muestra?
Yes, we support sample services; contact us to claim your sample today!
¿Cómo puedo comunicarme con usted?
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
