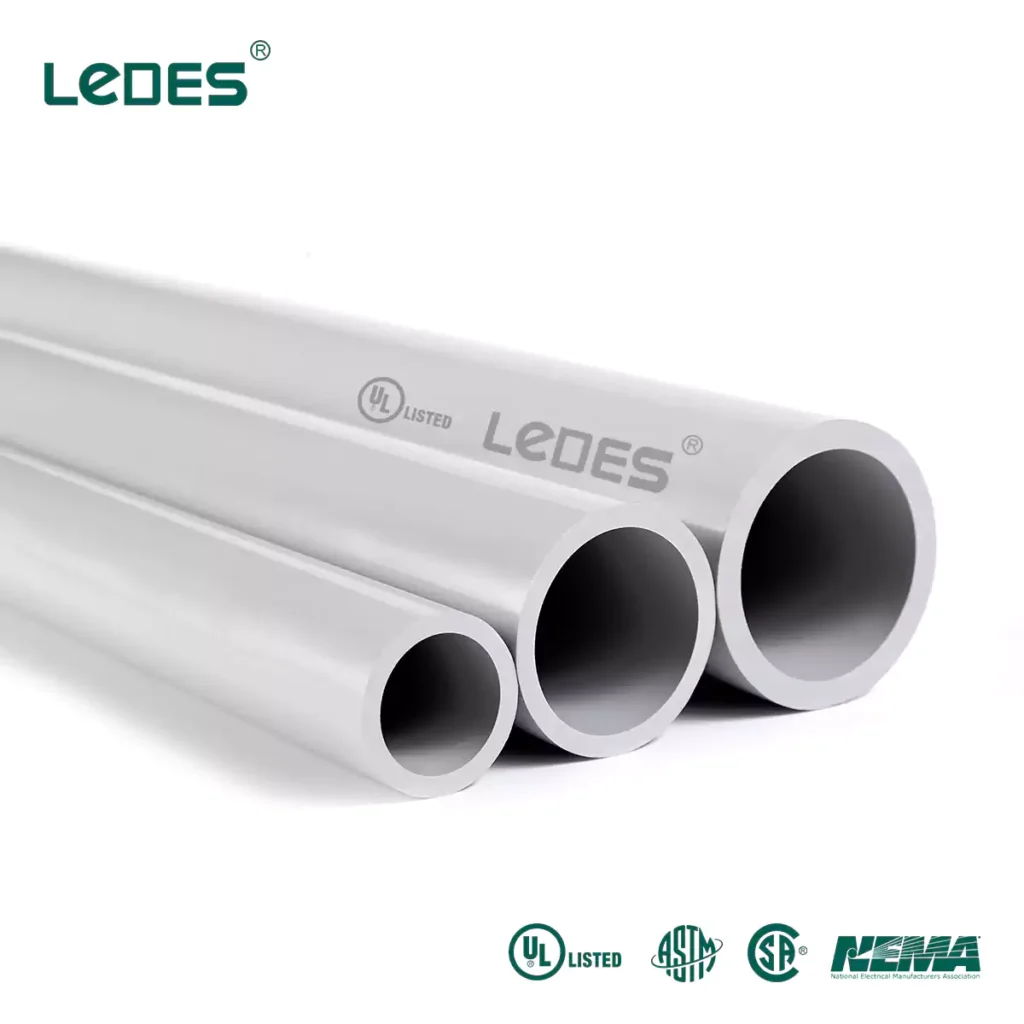

Conducto de PVC tipo EB
Características
Type EB PVC conduit is designed for encasement in concrete in trenches outside of buildings.
In terms of performance, it is very close to the schedule 40 PVC conduit and has passed UL and ASTM certification, making it a smart choice for construction companies and electrical contractors.
- Listado UL 651
- ASTM 1784-20 Certified
- NEMA & NEC Compliance
- Customized service available
- For electrical contractors, builders and wholesaler
Descripción general
UL LISTED. Ledes Type EB PVC conduit is the UL-listed & 90°C Wire Rated. Contact our expert for more information.
Branded Product. 100% brand new materials and has high quality such as smooth interior and outside for running the electrical wires, and compliance NEC code.
Fire Rated. UL 94V-0/5VA fire rating means no flaming out in 5s when cutting off the fire source, which will best protect your building & facilities.
Non-Metallic Pipe. Heat-, corrosion-, fire-, sunlight-, and rust resistance are pros for EB pipe.
Trusted Partner. 1500+ customers in services & 15+ mass project core suppliers all over the world.

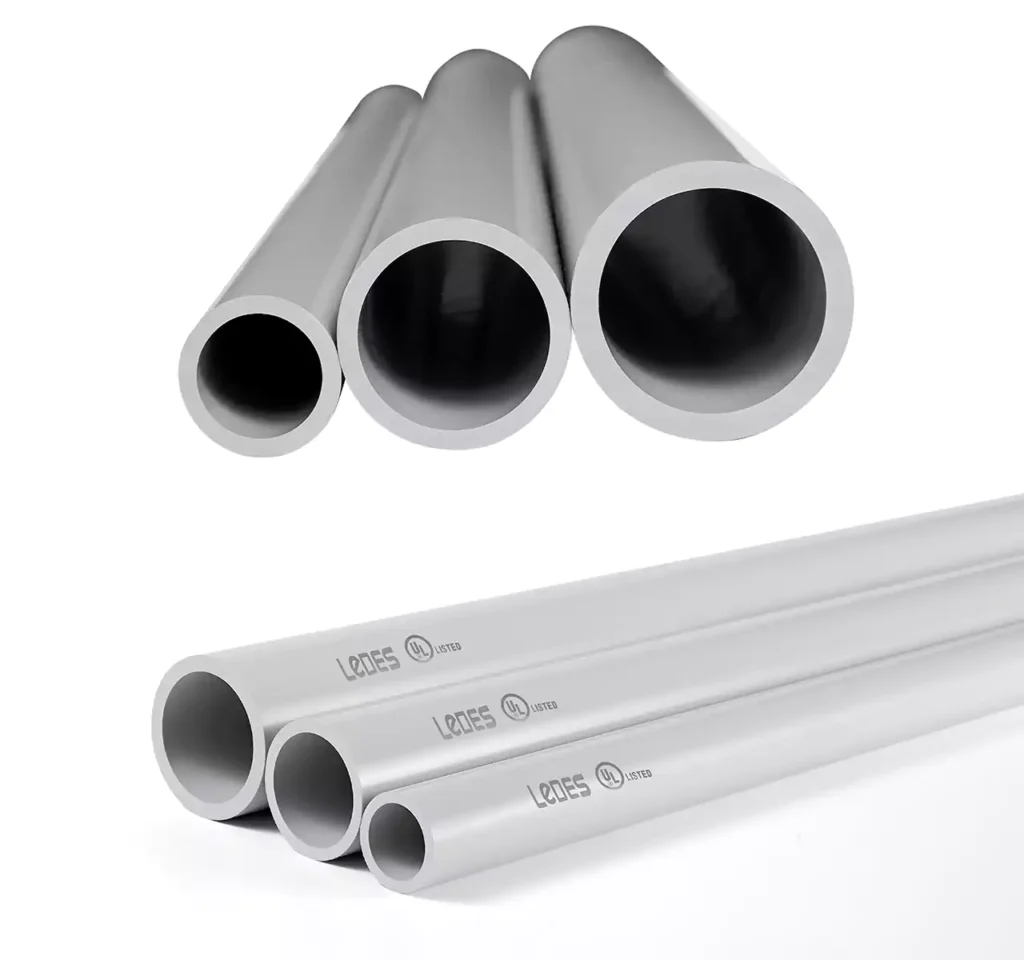

Product Description
As the world's most stringent electrical conduit standard, UL listed Type EB conduits can ensure the greatest possible safety for your project and electrical equipment.
The ASTM D1784-20 standard sets clear requirements for the raw materials of PVC electrical conduits. Only good PVC raw materials can have good quality.
UL certification requires UL94 level, but Ledes' fire protection level is UL94 V-0/5VA, which is the highest fire protection level and can extinguish open flames within 5 seconds after cutting off the fire source.
The excellent type EB electrical conduit has Sunlight Resistance performance, and Ledes' UL listed conduit series has all passed the sunlight resistance test.
The 90°C Wire Rated ensures that rigid PVC conduit can handle thicker diameter wires without creating a safety risk due to overheating.
Size Chart & Performance
Size(in) | Part No. | OD(in) | T(Max) |
2 | LE-TEBA | 2.375 | 0.094 |
3 | LE-TEBB | 3.500 | 0.109 |
3-1/2 | LE-TEBC | 4.000 | 0.124 |
4 | LE-TEBD | 4.500 | 0.129 |
5 | LE-TEBE | 5.563 | 0.144 |
6 | LE-TEBF | 6.625 | 0.164 |
Tensile Strength | 4000 lbf/in2 (2.76 kN/cm2) |
Extrusion | Fusion |
Water Absorption | ﹤0.50% of Whole Weight After Soak |
Resistance to Crushing | ID≥70% After Test |
Resistance to Impact | Less Than 3 of 1/32 inch Cracks & Tears |
Deflection under Load | ﹤0.25mm (0.010 inch) Deformation |
Fire Rating | UL 94V-0/5VA |
Resistance to Specific Reagents | Less ±2.50% Weight After 60 / 120 Days Soak |
Permanency of Printing | Yes |
Rust & Sunlight Resistant | Yes |
Color | Gray or Customized |
Material | PVC |
Customization Services | Available |
Place of Origin | Dongguan, China |
Shipping | By sea |
Samples | Available |
Length | 10ft or 20ft.. |
Similar Electrical Conduit
Conducto tipo A
Ledes type A conduit is designed to be buried in concrete in trenches outside buildings. It is a rigid conduit for protecting electrical wires.
¿Por qué Ledes?
1st UL & CSA Certified in China
Ledes, a leading PVC conduit manufacturer in China, is UL & CSA-certified with FT4 rating. They also have ASTM, AS / NZS 2053, IEC, ROHS, CE, and ISO certifications. With its superior quality and compliance, Ledes has become a trusted brand for electrical professionals and homeowners.
The Contractor's Choice
With 14+ years of industry experience, we've proudly served power stations, hospitals, metro systems, and solar projects, and more.
Customization
Tailored to your project, Ledes offers compliant products that save you time and cost. Meet local electrical code requirements 100% while optimizing your project.
Competitive Price
Get cost savings and a competitive edge. Purchase directly from the factory and increase your local market competitiveness.
High Quality
Ledes reach extends beyond borders. Delivering high-quality products to over 80 countries worldwide, we're proud to offer exceptional conduit solutions to customers everywhere.
Nuestro conducto eléctrico y fábrica certificada por
Certificaciones
● UL & CSA & ASTM & AS/NZS & IEC & ISO Certified
● Más de 1500 clientes en servicio
● Más de 100 certificaciones y patentes
● Más de 15 proveedores principales de proyectos de construcción
● Más de 16 años de fábrica y más de 500 trabajadores
Projects
Ledes is proud to have participated in 15+ large-scale construction projects and become the top electrical conduit supplier for real estate developers, including the United States, Canada, Australia, Saudi Arabia, Macau and other countries, and has been well received by contractors and builders!
- Proyecto CHPE
- El estandarte de las cuatro esquinas
- Central eléctrica de ABBrown
- Túnel del metro de Melbourne
- Proyecto PV2 Al Dhafra en Abu Dabi, Emiratos Árabes Unidos
- Macau Island Hospital
Lo que dicen nuestros clientes
FAQ
¿Es usted un fabricante o una empresa comercial?
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
¿Disponen de servicios personalizados?
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
¿Cual es su MOQ?
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
¿Cual es su plazo de entrega?
The general L/D is 15 – 30 days, but it depends on your quantity.
¿Cual es su puerto de envío?
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
¿Cual es su plazo de pago?
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
¿Ofrecen servicios de muestra?
Yes, we support sample services; contact us to claim your sample today!
¿Cómo puedo comunicarme con usted?
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
Cooperar con Ledes
¿Busca un socio para la distribución y venta al por mayor? Ledes ofrece una red integral de distribuidores y mayoristas en todo el mundo. Obtenga acceso exclusivo a recursos técnicos y de marketing.
Related Products

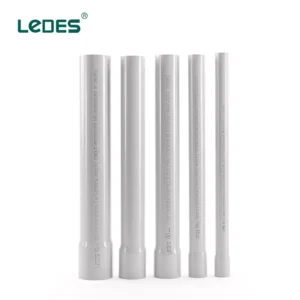

Conducto de PVC Schedule 40
