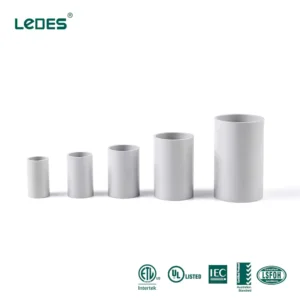

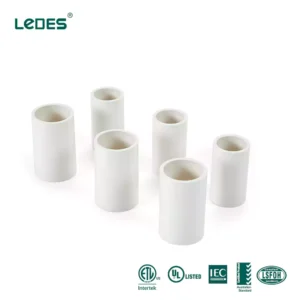

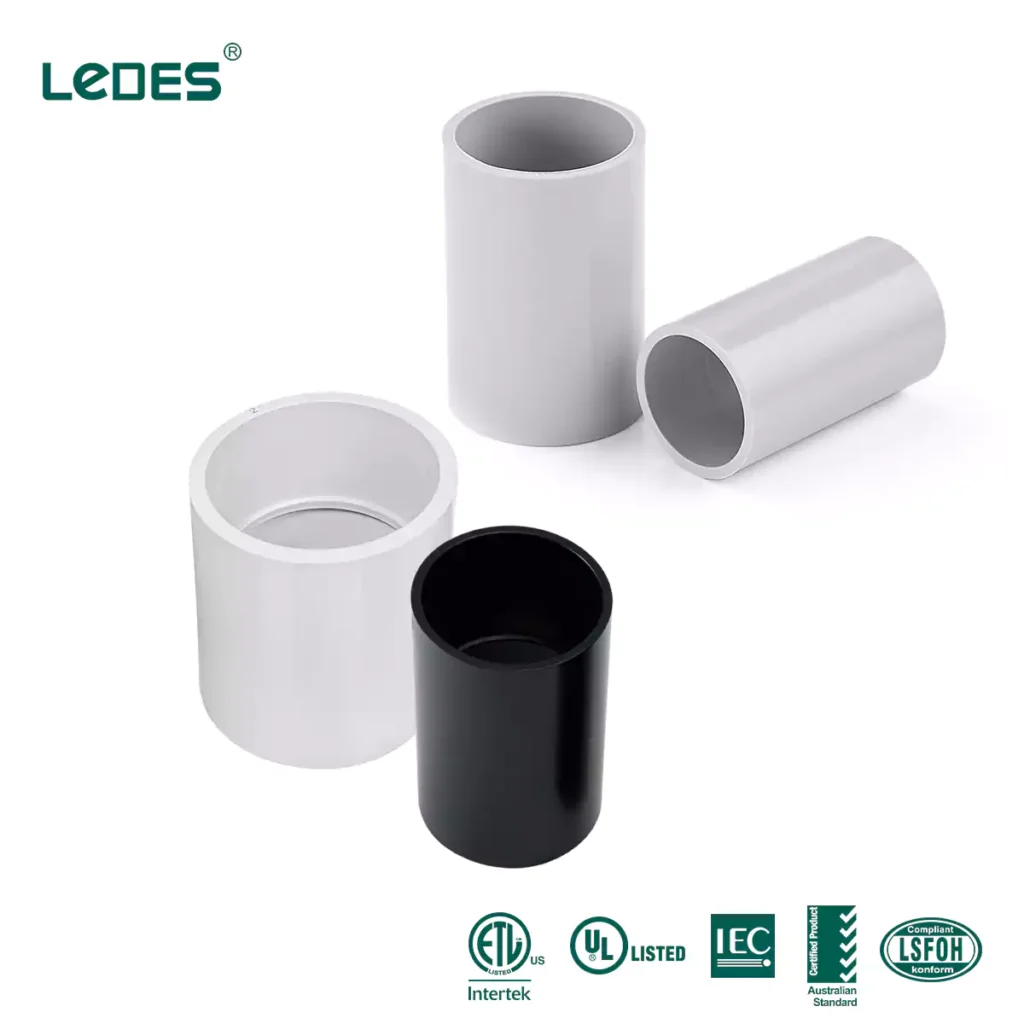

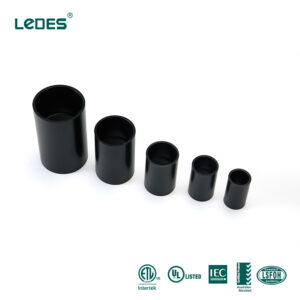

PVC Conduit Coupling
Features

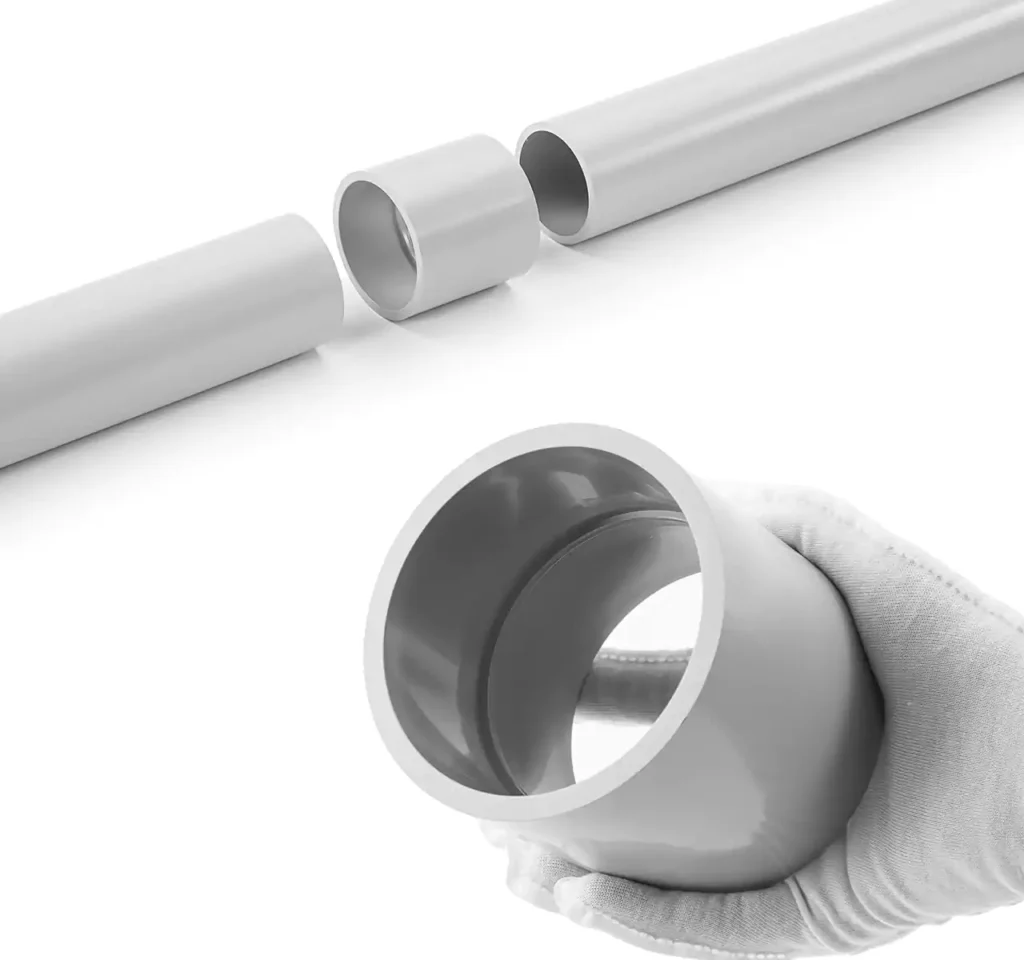

PVC conduit coupling is designed to connect two PVC pipes. In most cases, the two conduits are the same size, but expansion coupling is an exception. It can convert small sizes to large sizes and ensure reliable installation.
Common conduit connector sizes include 1/2 inch to 8 inches (North America) and 16mm to 150mm (Australia and other countries). Because it needs to be used with PVC electrical conduits, it needs to pass relevant standards such as ETL, UL, CSA, IEC and AS/NZS, as well as comply with local electrical codes.
- ETL & UL Listed
- IEC & AS/NZS Certified
- NEC & CEC & AS/NZS 3000 Compliance
- Customized service available
- For electrical contractors, builders and wholesaler
Overview
Authoritative Certifications. Ledes PVC conduit couplings are ETL & UL & CSA & IEC & AS/NZS Certified. Reach out to our expert to know more details.
Branded Product. Made of 100% brand new materials and has high quality, such as a smooth interior and outside for running the electrical cables.
Long Last & Durability. Up to 4448N Bending Load & 166.7 lbf of Crushing Resistance, ensuring long-term stable use after installation.
Fire Rated. UL94 V-0/5VA & FT4 fire-rated can ensure that the spread of fire is reduced and electrical safety is improved in extreme cases.
Trusted Partner. 1500+ customers in services & 15+ mass project core suppliers all over the world.
Product Description
The center stop coupling is used with Schedule 40 conduit, while the CSA-certified conduit coupling can be used with PVC conduit, such as DB2 conduit, to comply with NEC and CEC requirements.
IEC is a global standard that can fully meet the needs of countries outside North America. And Ledes also offers electrical fittings customized for the Australian market and has passed the test of AS/NZS 2053 standards.
Ledes' pvc conduit coupling passed UL94 V-0/5VA and FT4 fire rated dual certifications, fully complies with NEC, CEC and AS/NZS 3000 codes, and can be sold and used in over the world.
Up to 4448N Bending Load & 166.7 lbf of Crushing Resistance, not only fully meets the certification requirements of UL and CSA, but also can be maintenance-free in the later stage, greatly reducing the cost for the builder and electrical contractor.
Ledes not only offfers pre-sales service, but also after-sales service relying on local brand distributors to provide convenient and fast support, so you don’t have to worry about it.
Size Chart & Performance
Trade Size | Part No. | W(in) | L(in) | ID(in) |
1/2 | LE-ULCP01 | 1.066 | 1.500 | 0.852 |
3/4 | LE-ULCP02 | 1.307 | 1.563 | 1.064 |
1 | LE-ULCP03 | 1.602 | 2.000 | 1.330 |
1-1/4 | LE-ULCP04 | 2.020 | 2.165 | 1.677 |
1-1/2 | LE-ULCP05 | 2.252 | 2.357 | 1.918 |
2 | LE-ULCP06 | 2.744 | 2.600 | 2.393 |
2-1/2 | LE-ULCP07 | 3.351 | 3.500 | 2.890 |
3 | LE-ULCP08 | 4.035 | 3.875 | 3.515 |
3-1/2 | LE-ULCP09 | 4.539 | 4.000 | 4.015 |
4 | LE-ULCP10 | 5.039 | 4.188 | 4.515 |
5 | LE-ULCP11 | 6.169 | 5.375 | 5.593 |
6 | LE-ULCP12 | 7.247 | 6.375 | 6.669 |
8 | LE-ULCP13 | 9.315 | 10.500 | 8.685 |
ITEM NO | ID(mm) | INNER PACKING | OUTER PACKING | ||
UNIT | QTY | UNIT | QTY | ||
LE-ASCCA | ￠16 | BOX | 200 | CTN | 2000 |
LE-ASCCB | ￠20 | BOX | 50 | CTN | 1000 |
LE-ASCCC | ￠25 | BOX | 50 | CTN | 1000 |
LE-ASCCD | ￠32 | BOX | 20 | CTN | 500 |
LE-ASCCE | ￠40 | BOX | 10 | CTN | 200 |
LE-ASCCF | ￠50 | BOX | 10 | CTN | 200 |
LE-ASCCG | ￠63 | BOX | Customized | CTN | Customized |
LE-ASCCH | ￠80 | BOX | Customized | CTN | Customized |
LE-ASCCI | ￠100 | BOX | Customized | CTN | Customized |
LE-ASCCJ | ￠125 | BOX | Customized | CTN | Customized |
LE-ASCCK | ￠150 | BOX | Customized | CTN | Customized |
Bending Load | Up to 4448N(1000 lbf) |
Resistance to Crushing | Up to 166.7 lbf per linear |
Heat-distortion | ﹤15% with No Cracking |
Water Absorption | ﹤0.50% Weight |
Flammability Test | Less Than 5 Seconds Continue to Flame |
Extrusion/molding-process Test | No Flaking or Cracking |
Fire Rating | UL 94V-0/5VA, FT4 |
Permanency of Printing | Yes |
Rust & Sunlight Resistant | Yes |
Color | Gray or Customization |
Material | PVC |
Customized Services | Available |
Place of Origin | Dongguan, China |
Shipping | By sea |
Samples | Available |
Dimensions | 1/2 inch to 8 inch / 16mm to 150mm |
ENT Conduit Series

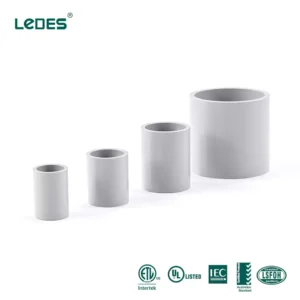

Schedule 40 Conduit Coupling
