Solar Panel Conduit
Features
Solar panel conduit is used to protect photovoltaic electrical cables. It has excellent UV and sunlight resistance. It can be installed and used in areas with large temperature differences between day and night, such as deserts, and effectively protects the normal operation of cables.
Ledes solar conduit is split into rigid conduit, corrugated conduit and electrical fittings. All products have passed IEC, AS/NZS and UV aging tests, and have been installed in Abu Dhabi Solar PV projects. In addition, solar conduits can also be used in new energy power generation fields such as wind, hydropower and geothermal.
- IEC 61386 & AS/NZS 2053 Certified
- UL 651 Listed & UV Aging Test
- NEC & AS/NZS 3000 Compliance
- Customized service available
- For electrical contractors, builders and wholesaler
Overview
UV & Sunlight Test. Up to 1440 hours of UV testing ensures that the solar panel conduit will not age and crack due to long-term direct sunlight in actual applications, ensuring the safety of internal lines.
IEC & UL Certified. Ledes’ entire series of solar conduits and accessories has been tested for IEC and UL certification. Consult our team of experts for more information.
Excellent Performance. Up to 5,000 psi Tensile Strength and 6J Impact Resistance ensure that the conduit remains intact in the event of external impact, protecting the internal cables.
Fire Rated. UL94 V-0/5VA is the highest fire rating of UL, which can extinguish itself within 5s after the removal of the open flame, ensuring the safety of facilities and personnel.
Trusted Partner. 1500+ customers in services & 15+ mass project core suppliers all over the world.
Product Description
Up to 1440 hours of uninterrupted UV testing are used to simulate extreme conditions and continuously exert influence on the solar conduit. Aging and cracking must meet the standards before shipment.
Certified by IEC and UL, we ensure that the conduit performance complies with the electrical codes of your country and that the construction project passes the acceptance smoothly.
Ledes' solar panel conduit has passed UL94 V-0/5VA rated, fully complies with NEC and AS/NZS 3000 codes, and can be sold and installed in North America and Australia.
Up to 5,000 psi Tensile Strength & 6J Impact Resistance ensure that the solar conduit does not crack or be damaged even when subjected to external impact, to protect the internal cables better.
Ledes not only offfers pre-sales service, but also after-sales service relying on local brand distributors to provide convenient and fast support, so you don’t have to worry about it.
Size Chart & Performance
Products Code | Type | W.T(mm) | L(m) | UNIT | QTY |
LE-HDSLRCGA | ￠20 | 2.6 | 4 | Bundle | 15 |
LE-HDSLRCGB | ￠25 | 2.8 | 4 | Bundle | 10 |
LE-HDSLRCGC | ￠32 | 3.0 | 4 | Bundle | 10 |
LE-HDSLRCGD | ￠40 | 3.4 | 4 | Bundle | 5 |
LE-HDSLRCGE | ￠50 | 3.9 | 4 | Bundle | 5 |
LE-HDSLRCGF | ￠63 | 4.5 | 4 | Bundle | 5 |
LE-HDSLRCGG | ￠80 | 5.3 | 4 | Bundle | 1 |
LE-HDSLRCGH | ￠100 | 6.7 | 4 | Bundle | 1 |
LE-HDSLRCGI | ￠125 | 8.1 | 4 | Bundle | 1 |
LE-HDSLRCGJ | ￠150 | 9.3 | 4 | Bundle | 1 |
Products Code | Size | Avg.OD(in) | Avg.ID(in) | Min T(in) |
LE-SRCS40A | 1/2 | 0.840 | 0.578 | 0.109 |
LE- SRCS40B | 3/4 | 1.050 | 0.780 | 0.113 |
LE- SRCS40C | 1 | 1.315 | 1.004 | 0.133 |
LE- SRCS40D | 1-1/4 | 1.660 | 1.335 | 0.140 |
LE- SRCS40E | 1-1/2 | 1.900 | 1.564 | 0.145 |
LE- SRCS40F | 2 | 2.375 | 2.021 | 0.154 |
LE- SRCS40G | 2-1/2 | 2.875 | 2.414 | 0.203 |
LE- SRCS40H | 3 | 3.500 | 3.008 | 0.216 |
LE- SRCS40I | 3-1/2 | 4.000 | 3.486 | 0.226 |
LE- SRCS40J | 4 | 4.500 | 3.961 | 0.237 |
LE- SRCS40K | 5 | 5.563 | 4.975 | 0.258 |
LE- SRCS40L | 6 | 6.625 | 5.986 | 0.280 |
LE- SRCS40M | 8 | 8.625 | 7.853 | 0.322 |
Tensile Strength | 5000 psi (3.45 kN/cm2) |
Resistance to Impact | Less Than 3 of 1/32 inch Cracks & Tears |
Temperature Range | -15 to +105℃ (5 to 221℉) |
Resistance to Bending | Rigid |
Electrical Characteristics | Electrical Insulated |
Fire Rating | UL 94V-0/5VA |
Extrusion | Fusion |
Resistance to UV: | Extreme Resistance to UV Radiation |
Corrosion Resistant | Yes |
Solar Panel Conduit Series

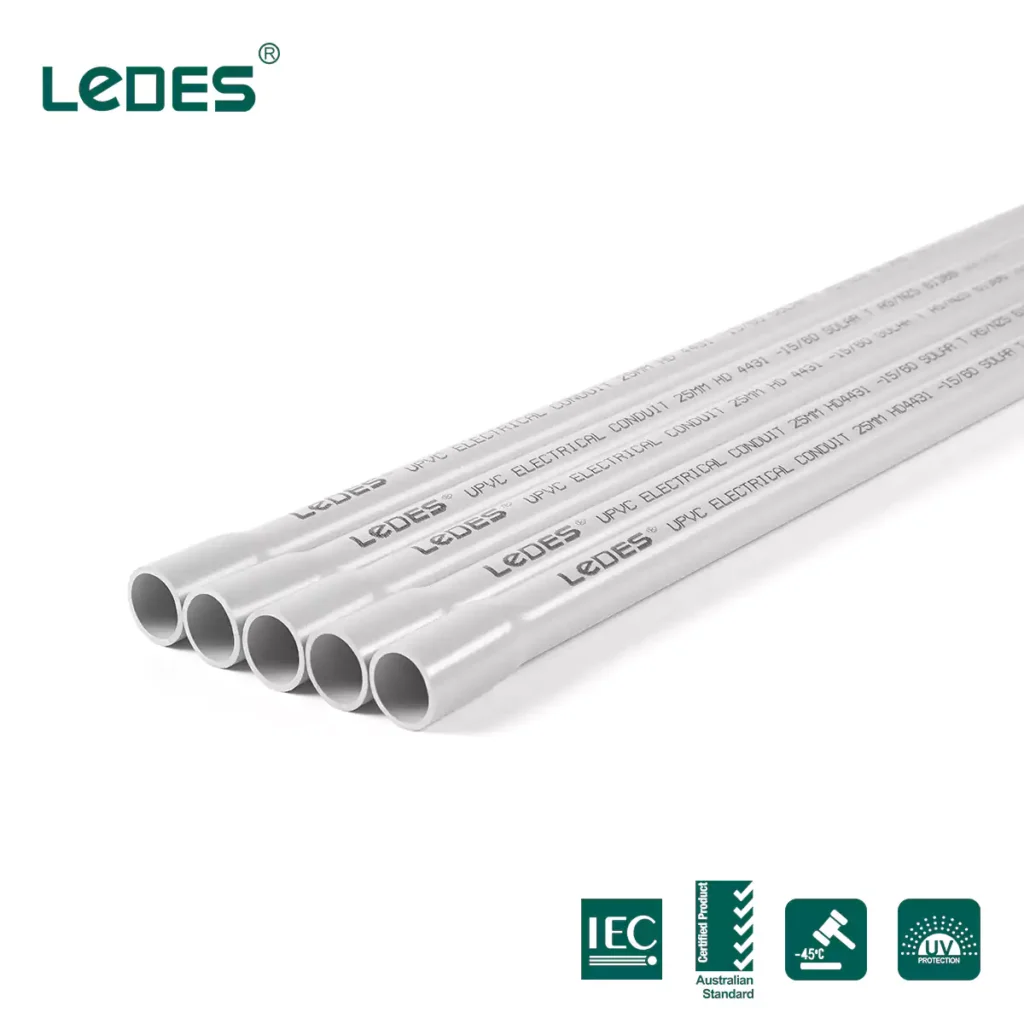

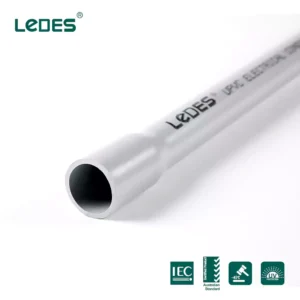

Solar Conduit MD & HD
Solar Conduit Medium Duty can be used for small and medium-sized solar power plants or similar projects, which can strike a balance between cost and benefit. Heavy-duty conduit is suitable for large solar power generation facilities and can provide excellent protection for cables.

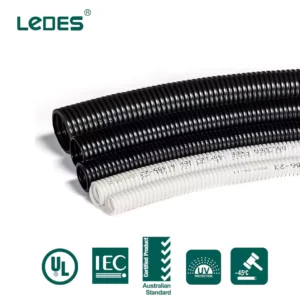

Solar Corrugated Conduit MD & HD
Solar Corrugated Conduit medium duty can be used for small and medium-sized solar power plants or similar projects, and can quickly pull the wires in limited space. The heavy-duty corrugated conduit can be installed in exposed locations to protect the cables better.

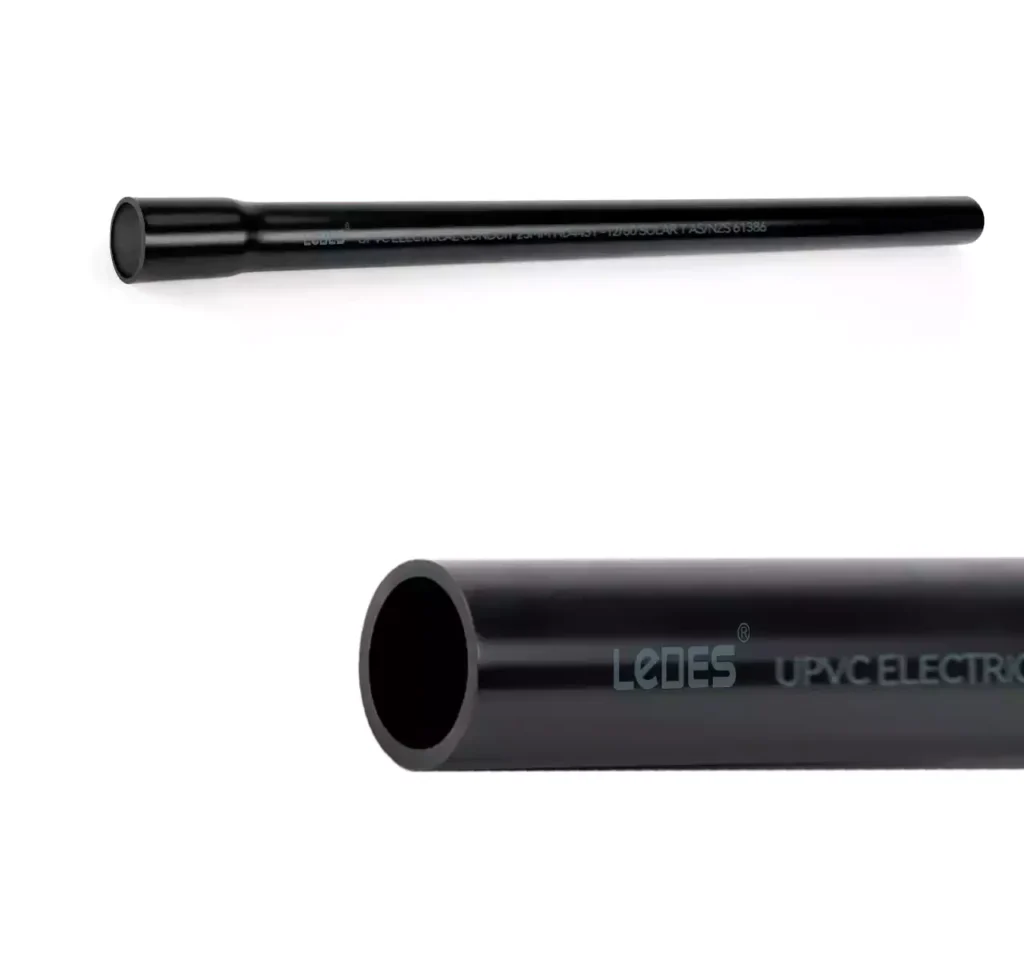

Sch 40 & Sch 80 Solar Conduit
Sch 40 Solar Conduit can be used for solar PV, wind power generation and electric vehicle charging pile cable protection. The excellent physical performance, plus excellent UV resistance, can guarantee that the conduit can work stably under direct sunlight.

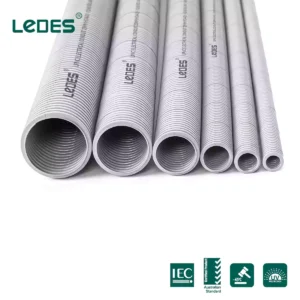

Solar ENT Conduit
Solar ENT Conduit has passed UL certification and can be used for photovoltaic, wind power and electric vehicle charging pile cable protection. It can pull cables without tools in a limited space, improving installation efficiency.
Why Ledes
1st UL & CSA Certified in China
Ledes, a leading PVC conduit manufacturer in China, is UL & CSA-certified with FT4 rating. They also have ASTM, AS / NZS 2053, IEC, ROHS, CE, and ISO certifications. With its superior quality and compliance, Ledes has become a trusted brand for electrical professionals and homeowners.
The Contractor's Choice
With 14+ years of industry experience, we've proudly served power stations, hospitals, metro systems, and solar projects, and more.
Customization
Tailored to your project, Ledes offers compliant products that save you time and cost. Meet local electrical code requirements 100% while optimizing your project.
Competitive Price
Get cost savings and a competitive edge. Purchase directly from the factory and increase your local market competitiveness.
High Quality
Ledes reach extends beyond borders. Delivering high-quality products to over 80 countries worldwide, we're proud to offer exceptional conduit solutions to customers everywhere.
Our electrical conduit & factory certified by
Certifications
● UL & CSA & ASTM & AS/NZS & IEC & ISO Certified
● 1500+ Customers in Service
● 100+ Certifications & Patents
● 15+ Construction Project Core Supplier
● 16+ Years Factory & 500+ Workers
Projects
Ledes is proud to have participated in 15+ large-scale construction projects and become the top electrical conduit supplier for real estate developers, including the United States, Canada, Australia, Saudi Arabia, Macau and other countries, and has been well received by contractors and builders!
- CHPE Project
- The Standard of Four Corners
- A.B.Brown Power Station
- Melbourne Metro Tunnel
- Abu Dhabi UAE Al Dhafra PV2 Project
- Macau Island Hospital
What Our Customer Say
FAQ
Are you a manufacturer or trading company?
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Do you have customized services available?
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
What is your MOQ?
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
What is your lead time?
The general L/D is 15 – 30 days, but it depends on your quantity.
What is your shipping port?
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
What is your payment term?
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Do you offer sample services?
Yes, we support sample services; contact us to claim your sample today!
How should I contact you?
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
