Type A Conduit
Features

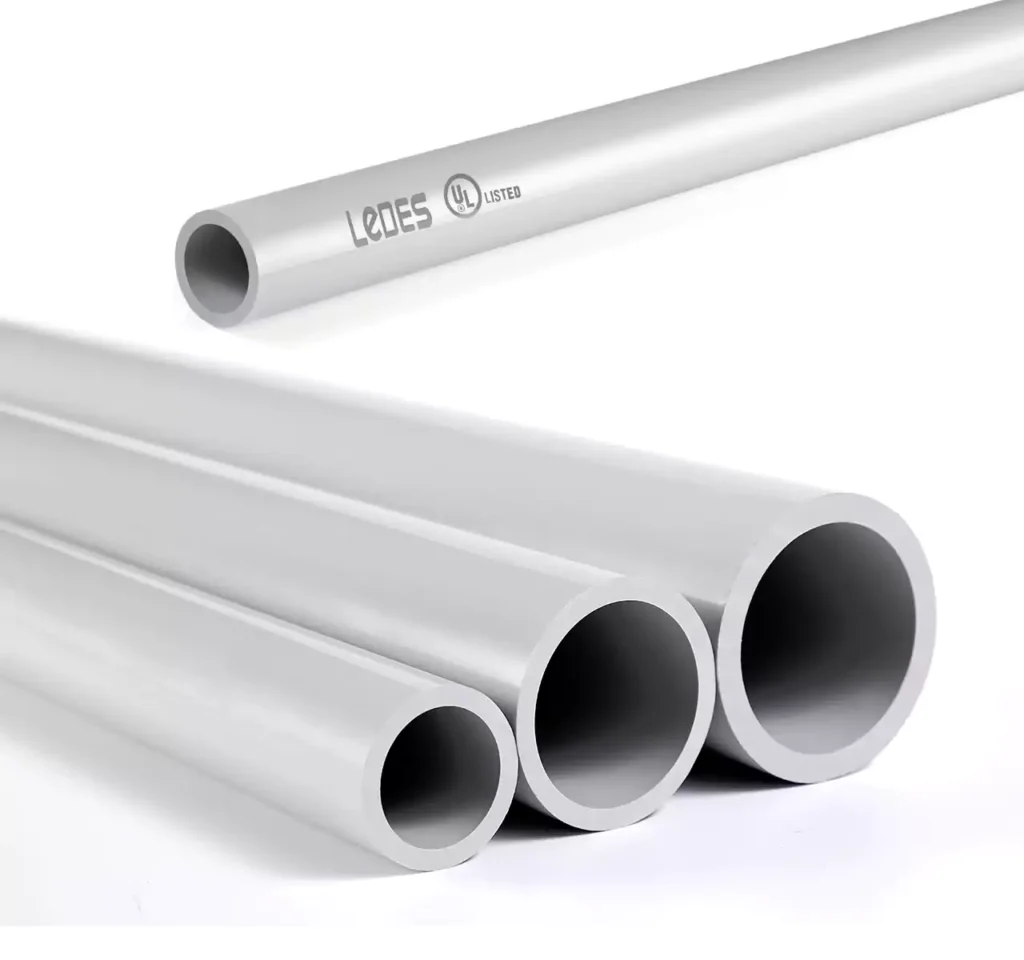

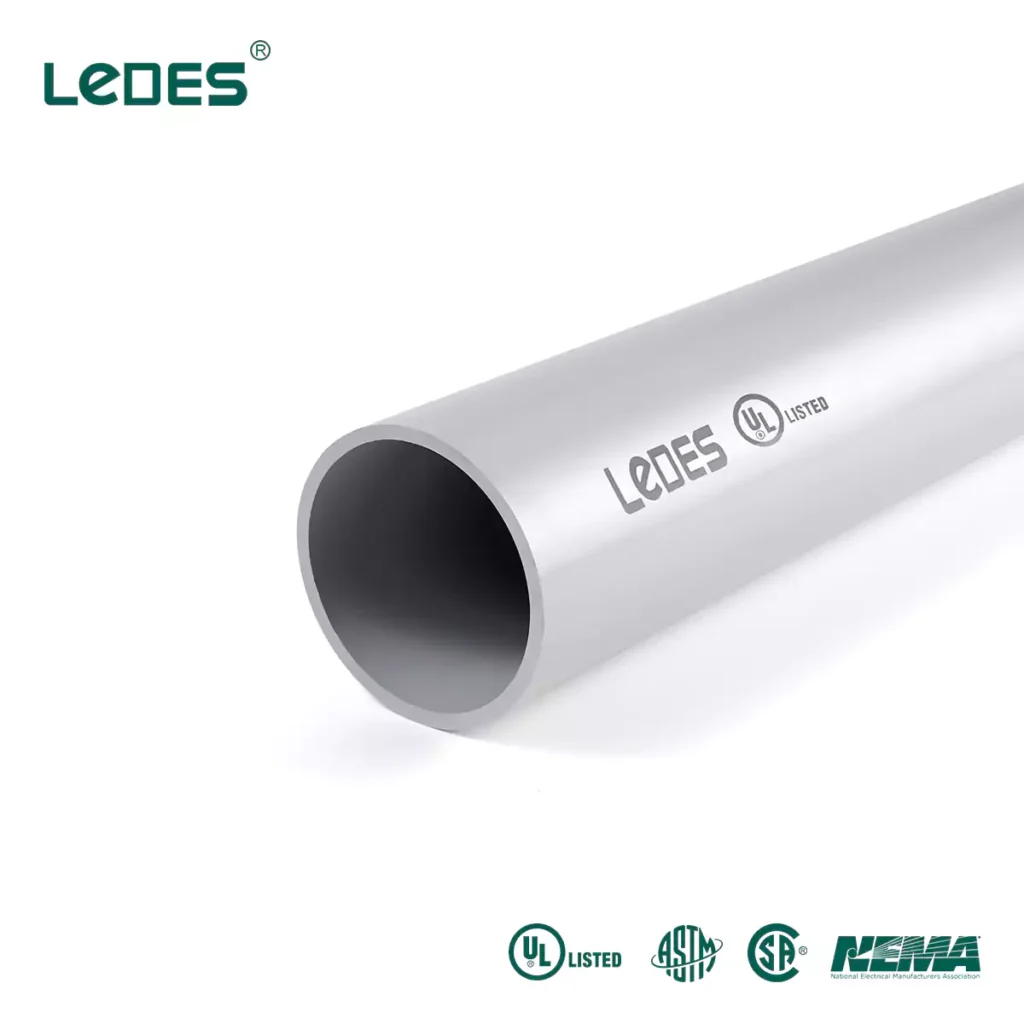

Ledes Type A PVC conduit is designed to be installed in concrete in any installation location. It is the same as Schedule 40 PVC conduit and accessories, which are designed for wiring at 75°C (167°F). These conduits and fittings serve as rigid, non-metallic pathways for wires and cables that meet the guidelines of the National Electrical Code.
- UL 651 Listed
- ASTM 1784-20 Certified
- NEMA & NEC Compliance
- Customized service available
- For electrical contractors, builders and wholesaler
Overview
UL LISTED. Ledes Type A electrical conduit is the UL-listed. Contact our expert for more information.
Branded Product. 100% brand new materials and has high quality such as smooth interior and outside for running the electrical wires, and compliance NEC code.
Fire Rated. UL 94V-0 fire rating means no flaming out in 5s when cutting off the fire source, which will best protect your building & facilities.
Non-Metallic Pipe. Heat-, corrosion-, fire-, sunlight-, and rust resistance are pros for type A conduit.
Trusted Partner. 1500+ customers in services & 15+ mass project core suppliers all over the world.
Product Description
As the world's most stringent electrical conduit standard, UL listed type A conduits can ensure the greatest possible safety for your project and electrical equipment.
The ASTM D1784-20 standard sets clear requirements for the raw materials of PVC conduits. Only good PVC raw materials can have good quality.
UL certification requires UL94 level, but Ledes' fire protection level is UL94 V-0/5VA, which is the highest fire protection level and can extinguish open flames within 5 seconds after cutting off the fire source.
The excellent type A PVC conduit has Sunlight Resistance performance, and Ledes' UL listed conduit series has all passed the sunlight resistance test.
The 90°C Wire Rated ensures that rigid PVC conduit can handle thicker diameter wires without creating a safety risk due to overheating.
Size Chart & Performance
Size(in) | Part No. | OD(in) | T(Max) |
1/2 | LE-TA01 | 0.840 | 0.080 |
3/4 | LE-TA02 | 1.050 | 0.080 |
1 | LE-TA03 | 1.315 | 0.080 |
1-1/4 | LE-TA04 | 1.660 | 0.090 |
1-1/2 | LE-TA05 | 1.900 | 0.100 |
2 | LE-TA06 | 2.375 | 0.120 |
2-1/2 | LE-TA07 | 2.875 | 0.130 |
3 | LE-TA08 | 3.500 | 0.145 |
3-1/2 | LE-TA09 | 4.000 | 0.165 |
4 | LE-TA10 | 4.500 | 0.170 |
5 | LE-TA11 | 5.563 | 0.190 |
6 | LE-TA12 | 6.625 | 0.210 |
Tensile Strength | 4000 lbf/in2 (2.76 kN/cm2) |
Extrusion | Fusion |
Water Absorption | ﹤0.50% of Whole Weight After Soak |
Resistance to Crushing | ID≥70% After Test |
Resistance to Impact | Less Than 3 of 1/32 inch Cracks & Tears |
Deflection under Load | ﹤0.25mm (0.010 inch) Deformation |
Fire Rating | UL 94V-0/5VA |
Resistance to Specific Reagents | Less ±2.50% Weight After 60 / 120 Days Soak |
Permanency of Printing | Yes |
Rust & Sunlight Resistant | Yes |
Color | Gray or OEM |
Material | PVC |
Customization Services | Available |
Place of Origin | Dongguan, China |
Shipping | By sea |
Samples | Available |
Length | 10ft or 20ft.. |
Similar Electrical Conduit
Type EB Conduit
Ledes type EB PVC conduit is designed to be buried in concrete in trenches outside buildings. It is a rigid conduit for protecting cables.
Why Ledes
1st UL & CSA Certified in China
Ledes, a leading PVC conduit manufacturer in China, is UL & CSA-certified with FT4 rating. They also have ASTM, AS / NZS 2053, IEC, ROHS, CE, and ISO certifications. With its superior quality and compliance, Ledes has become a trusted brand for electrical professionals and homeowners.
The Contractor's Choice
With 14+ years of industry experience, we've proudly served power stations, hospitals, metro systems, and solar projects, and more.
Customization
Tailored to your project, Ledes offers compliant products that save you time and cost. Meet local electrical code requirements 100% while optimizing your project.
Competitive Price
Get cost savings and a competitive edge. Purchase directly from the factory and increase your local market competitiveness.
High Quality
Ledes reach extends beyond borders. Delivering high-quality products to over 80 countries worldwide, we're proud to offer exceptional conduit solutions to customers everywhere.
Our electrical conduit & factory certified by
Certifications
● UL & CSA & ASTM & AS/NZS & IEC & ISO Certified
● 1500+ Customers in Service
● 100+ Certifications & Patents
● 15+ Construction Project Core Supplier
● 16+ Years Factory & 500+ Workers
Projects
Ledes is proud to have participated in 15+ large-scale construction projects and become the top electrical conduit supplier for real estate developers, including the United States, Canada, Australia, Saudi Arabia, Macau and other countries, and has been well received by contractors and builders!
- CHPE Project
- The Standard of Four Corners
- A.B.Brown Power Station
- Melbourne Metro Tunnel
- Abu Dhabi UAE Al Dhafra PV2 Project
- Macau Island Hospital
What Our Customer Say
FAQ
Are you a manufacturer or trading company?
Ledes is a professional PVC electrical conduit and fittings factory, and we have two different facilities located in China. Our product is UL, CSA, ASTM, IEC, AS/NZS, ROHS, and CE certified.
Do you have customized services available?
Yes, Ledes offers fully customized services for electrical conduits and fittings. Not only the color and size, we can customize based on your construction project.
What is your MOQ?
Different size of conduit has different MOQs; if you talk about PVC conduit, it is generally 3,000 meters to 5,000 meters (9,850 ft to 16,500 ft), depending on size.
What is your lead time?
The general L/D is 15 – 30 days, but it depends on your quantity.
What is your shipping port?
We shipped goods to Guangzhou or Shenzhen port. Let us know if you have any special requests.
What is your payment term?
We accept 30% T/T pre-paid, and the rest 70% needs to be paid before shipment.
Do you offer sample services?
Yes, we support sample services; contact us to claim your sample today!
How should I contact you?
You can contact us in 3 different ways: submit the contact form, send an email, or send us WhatsApp messages.
